Diffraction project datasets MCRE75s_single_raw_9IBB
- Resolution: 1.84 Å
- Space group: H 3
Uniprot website for P01308
PDB website for 9IBB
PDB validation report for 9IBB
doi:10.18430/M39IBB
Project details

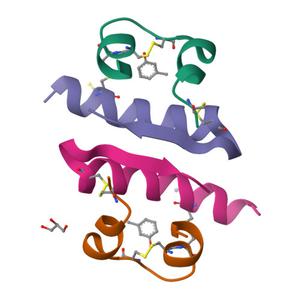

| Title | Rhombohedral crystalline form of human insulin complexed with m-cresol |
| Authors | Papaefthymiou, C., Nanao, M.H., Margiolaki, I., Kontarinis, A., Kafetzi, S., Konstantopoulos, M., Koutoulas, D. |
| R / Rfree | 0.18 / 0.22 |
| Unit cell edges [Å] | 78.68 x 78.68 x 39.88 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

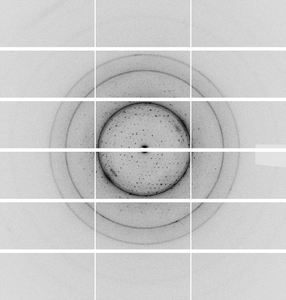

Dataset MCRE75s_hel_1_1_master.h5@##### details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 155.7 |
| Oscillation width [°] | 0.10 |
| Omega [°] | 181.0 |
| Wavelength [Å] | 0.87313 |
| Equipment | ID23-2 |
