Diffraction project datasets MG14459A_3fgy

  • Method: MAD
  • Resolution: 1.59 Å
  • Space group: P 21 21 21
Download all images (2.5 GB)

PDB website for 3FGY
PDB validation report for 3FGY

doi:10.18430/M33FGY

Project details

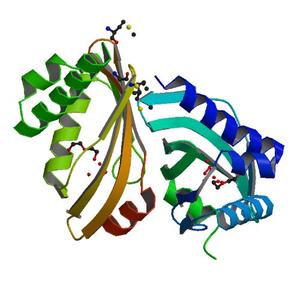

Title CRYSTAL STRUCTURE OF A NTF2-LIKE PROTEIN (BXE_B1094) FROM BURKHOLDERIA XENOVORANS LB400 AT 1.59 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.21
Unit cell edges [Å] 45.95 x 66.08 x 91.00
Unit cell angles [°] 90.0, 90.0, 90.0

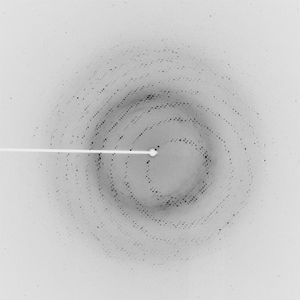

Dataset 97202_1_E1.#### details

Number of frames 90 (1 - 90)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 231.0
Wavelength [Å] 0.97967
Experiment Date 2008-10-11
Equipment 23-ID-B at APS (Advanced Photon Source)

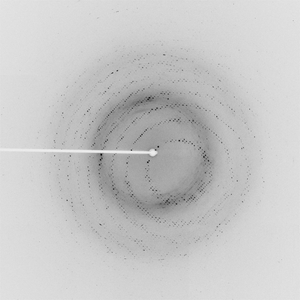

Dataset 97202_1_E2.#### details

Number of frames 90 (1 - 90)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 231.0
Wavelength [Å] 0.94645
Experiment Date 2008-10-11
Equipment 23-ID-B at APS (Advanced Photon Source)

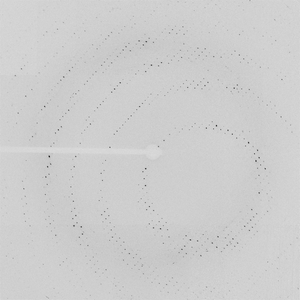

Dataset 97202_2.#### details

Number of frames 45 (1 - 45)
Distance [mm] 400.0
Oscillation width [°] 2.00
Phi [°] 231.0
Wavelength [Å] 0.94645
Experiment Date 2008-10-11
Equipment 23-ID-B at APS (Advanced Photon Source)
