Diffraction project datasets MG14474A_3er7
- Method: MAD
- Resolution: 1.5 Å
- Space group: P 21 21 2
PDB website for 3ER7
PDB validation report for 3ER7
doi:10.18430/M33ER7
Project details

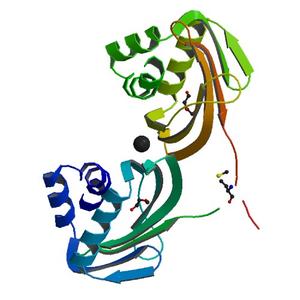

| Title | Crystal structure of NTF2-like protein of unknown function (YP_001812677.1) from EXIGUOBACTERIUM SP. 255-15 at 1.50 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.18 / 0.21 |
| Unit cell edges [Å] | 78.68 x 91.68 x 33.96 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

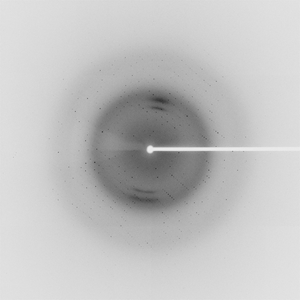

Dataset 93347_1_E1_###.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 120.0 |
| Wavelength [Å] | 0.97920 |
| Experiment Date | 2008-08-10 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

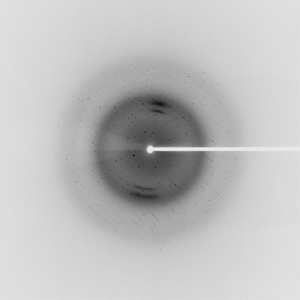

Dataset 93347_1_E2_###.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 120.0 |
| Wavelength [Å] | 0.91162 |
| Experiment Date | 2008-08-10 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
