Diffraction project datasets MG14518A_3f8x
Project details
| Title |

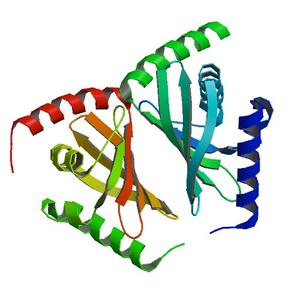

Crystal structure of a putative delta-5-3-ketosteroid isomerase (eca2236) from pectobacterium atrosepticum scri1043 at 1.55 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.16 / 0.19 |
| Unit cell edges [Å] |
50.78 x
51.60 x
66.31
|
| Unit cell angles [°] |
79.4,
79.7,
61.9
|

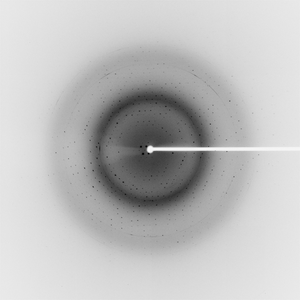

Dataset 91709_1_E1_###.mccd details
| Number of frames |
240 (1 - 240) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
298.0 |
| Wavelength [Å] |
0.97934 |
| Experiment Date |
2008-08-03 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

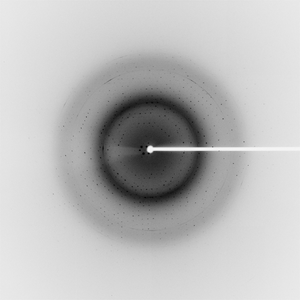

Dataset 91709_1_E2_###.mccd details
| Number of frames |
240 (1 - 240) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
298.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2008-08-03 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

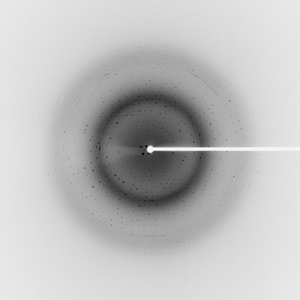

Dataset 91709_2_###.mccd details
| Number of frames |
240 (1 - 240) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
298.0 |
| Wavelength [Å] |
0.97922 |
| Experiment Date |
2008-08-03 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
