Diffraction project datasets MG14529A_3eo7

  • Method: MAD
  • Resolution: 1.8 Å
  • Space group: P 31 2 1
Download all images (2.2 GB)

PDB website for 3EO7
PDB validation report for 3EO7

doi:10.18430/M33EO7

Project details

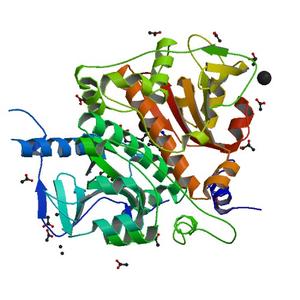

Title Crystal structure of a putative nitroreductase (ava_2154) from anabaena variabilis atcc 29413 at 1.80 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.14 / 0.16
Unit cell edges [Å] 93.88 x 93.88 x 144.95
Unit cell angles [°] 90.0, 90.0, 120.0

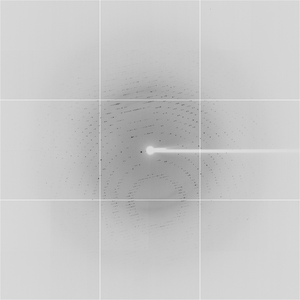

Dataset 91049_1_E1_###.img details

Number of frames 120 (1 - 120)
Distance [mm] 230.0
Oscillation width [°] 1.00
Phi [°] 97.0
Wavelength [Å] 0.97935
Equipment BL9-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

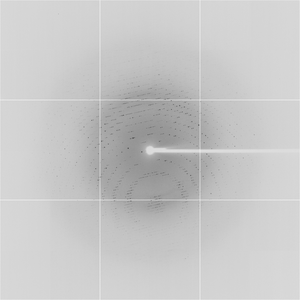

Dataset 91049_1_E2_###.img details

Number of frames 120 (1 - 120)
Distance [mm] 230.0
Oscillation width [°] 1.00
Phi [°] 97.0
Wavelength [Å] 0.91837
Equipment BL9-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

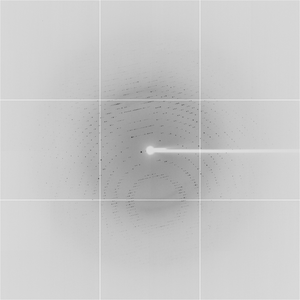

Dataset 91049_2_###.img details

Number of frames 120 (1 - 120)
Distance [mm] 230.0
Oscillation width [°] 1.00
Phi [°] 97.0
Wavelength [Å] 0.97899
Equipment BL9-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
