Diffraction project datasets MG14561F_3i0y
- Method: SAD
- Resolution: 1.5 Å
- Space group: P 1 21 1
PDB website for 3I0Y
PDB validation report for 3I0Y
doi:10.18430/M33I0Y
Project details

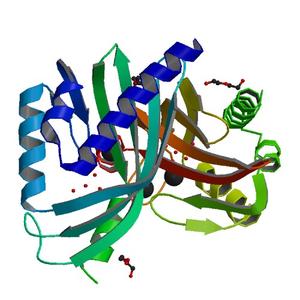

| Title | Crystal structure of a putative polyketide cyclase (xcc0381) from xanthomonas campestris pv. campestris at 1.50 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.17 / 0.21 |
| Unit cell edges [Å] | 47.63 x 98.78 x 62.05 |
| Unit cell angles [°] | 90.0, 110.5, 90.0 |

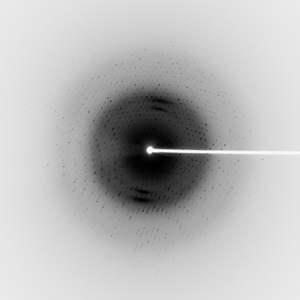

Dataset 108263_1_###.mccd details
| Number of frames | 150 (1 - 150) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 344.0 |
| Wavelength [Å] | 0.97849 |
| Experiment Date | 2009-02-18 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

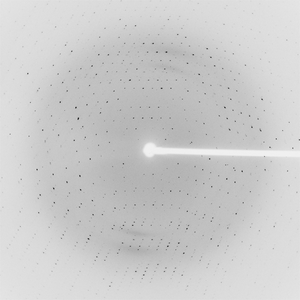

Dataset 108263_2_###.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 400.1 |
| Oscillation width [°] | 1.50 |
| Phi [°] | 344.0 |
| Wavelength [Å] | 0.97849 |
| Experiment Date | 2009-02-18 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
