Diffraction project datasets MG14655B_3g8z
- Method: MAD
- Resolution: 1.9 Å
- Space group: P 32 2 1
PDB website for 3G8Z
PDB validation report for 3G8Z
doi:10.18430/M33G8Z
Project details

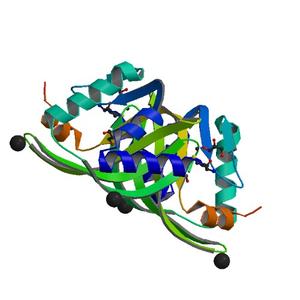

| Title | Crystal structure of protein of unknown function with cystatin-like fold (NP_639274.1) from Xanthomonas campestris at 1.90 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.17 / 0.20 |
| Unit cell edges [Å] | 69.99 x 69.99 x 46.41 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

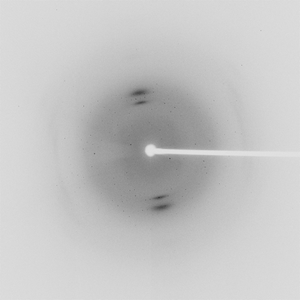

Dataset 102315_1_E1_###.mccd details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 230.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 211.0 |
| Wavelength [Å] | 0.97864 |
| Experiment Date | 2008-11-15 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

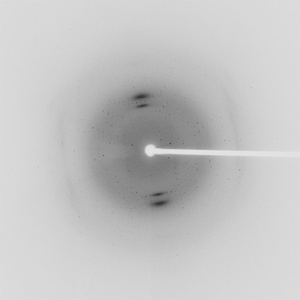

Dataset 102315_1_E2_###.mccd details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 230.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 211.0 |
| Wavelength [Å] | 0.91162 |
| Experiment Date | 2008-11-15 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
