Diffraction project datasets MG1588A_3ezu

  • Method: MAD
  • Resolution: 1.95 Å
  • Space group: P 21 21 2
Download all images (3.3 GB)

PDB website for 3EZU
PDB validation report for 3EZU

doi:10.18430/M33EZU

Project details

Title Crystal structure of multidomain protein of unknown function with GGDEF-domain (NP_951600.1) from GEOBACTER SULFURREDUCENS at 1.95 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.23
Unit cell edges [Å] 74.55 x 76.37 x 64.19
Unit cell angles [°] 90.0, 90.0, 90.0

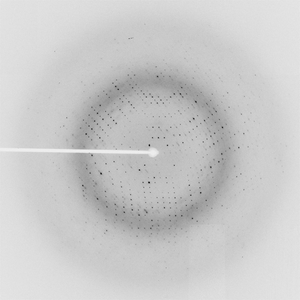

Dataset 94154_1_E1.#### details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 108.0
Wavelength [Å] 0.97967
Experiment Date 2008-10-11
Equipment 23-ID-B at APS (Advanced Photon Source)

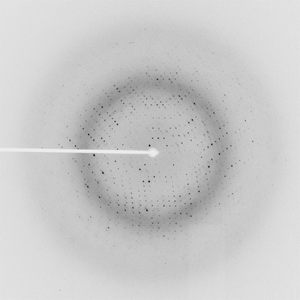

Dataset 94154_1_E2.#### details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 108.0
Wavelength [Å] 0.94645
Experiment Date 2008-10-11
Equipment 23-ID-B at APS (Advanced Photon Source)

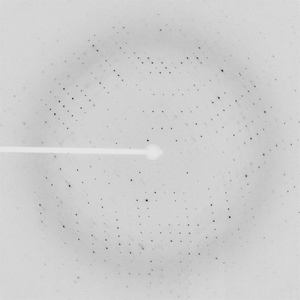

Dataset 94154_2.#### details

Number of frames 120 (1 - 120)
Distance [mm] 400.0
Oscillation width [°] 1.00
Phi [°] 108.0
Wavelength [Å] 0.97953
Experiment Date 2008-10-11
Equipment 23-ID-B at APS (Advanced Photon Source)
