Diffraction project datasets MH11753G_3h2d

  • Method: MAD
  • Resolution: 1.86 Å
  • Space group: P 21 21 21
Download all images (3.5 GB)

PDB website for 3H2D
PDB validation report for 3H2D

doi:10.18430/M33H2D

Project details

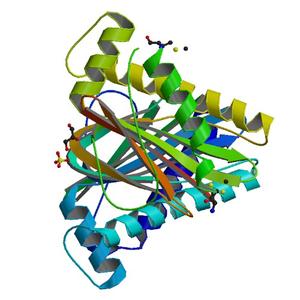

Title Crystal structure of a chemotactic chec-like protein (so_3915) from shewanella oneidensis mr-1 at 1.86 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.22
Unit cell edges [Å] 58.33 x 71.02 x 74.04
Unit cell angles [°] 90.0, 90.0, 90.0

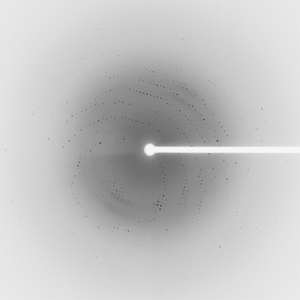

Dataset 107767_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 275.0
Oscillation width [°] 1.00
Phi [°] 138.0
Wavelength [Å] 0.97961
Experiment Date 2009-01-20
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

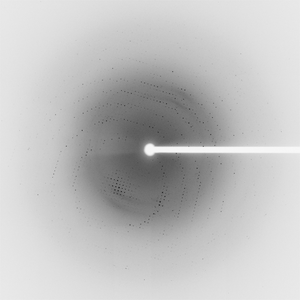

Dataset 107767_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 275.0
Oscillation width [°] 1.00
Phi [°] 138.0
Wavelength [Å] 0.91162
Experiment Date 2009-01-20
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

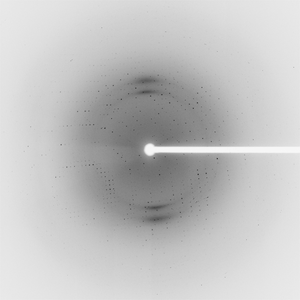

Dataset 107767_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 275.0
Oscillation width [°] 1.00
Phi [°] 228.0
Wavelength [Å] 0.97949
Experiment Date 2009-01-20
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
