Diffraction project datasets MH1224A_3mcp
- Method: MAD
- Resolution: 3.0 Å
- Space group: P 43 21 2
PDB website for 3MCP
PDB validation report for 3MCP
doi:10.18430/M33MCP
Project details

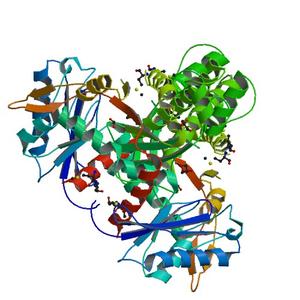

| Title | Crystal structure of Glucokinase (BDI_1628) from Parabacteroides distasonis ATCC 8503 at 3.00 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.21 / 0.25 |
| Unit cell edges [Å] | 80.73 x 80.73 x 142.58 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

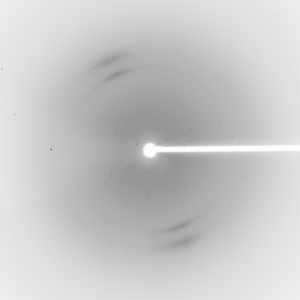

Dataset 130577_1_E1_###.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 390.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 59.0 |
| Wavelength [Å] | 0.97911 |
| Experiment Date | 2009-07-30 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

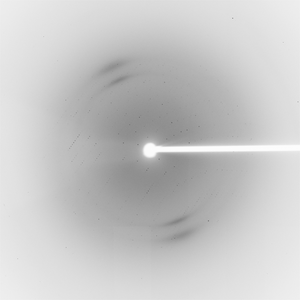

Dataset 130577_1_E2_###.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 390.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 59.0 |
| Wavelength [Å] | 0.91162 |
| Experiment Date | 2009-07-30 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
