Diffraction project datasets MH12279D_4qvu

  • Method: MAD
  • Resolution: 2.65 Å
  • Space group: P 64 2 2
Download all images (5.3 GB)

PDB website for 4QVU
PDB validation report for 4QVU

doi:10.18430/M34QVU

Project details

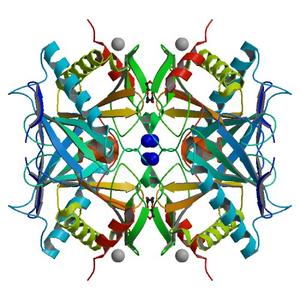

Title Crystal structure of a DUF4931 family protein (BCE0241) from Bacillus cereus ATCC 10987 at 2.65 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.21 / 0.26
Unit cell edges [Å] 102.05 x 102.05 x 95.48
Unit cell angles [°] 90.0, 90.0, 120.0

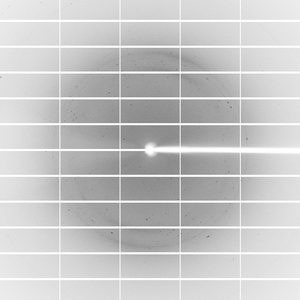

Dataset 133413_1_E1_#####.cbf details

Number of frames 480 (1 - 480)
Distance [mm] 500.0
Oscillation width [°] 0.25
Phi [°] 93.0
Wavelength [Å] 0.97940
Experiment Date 2014-03-27
Equipment BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

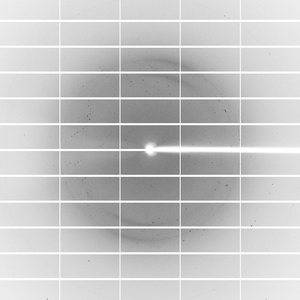

Dataset 133413_1_E2_#####.cbf details

Number of frames 480 (1 - 480)
Distance [mm] 500.0
Oscillation width [°] 0.25
Phi [°] 93.0
Wavelength [Å] 0.91160
Experiment Date 2014-03-27
Equipment BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

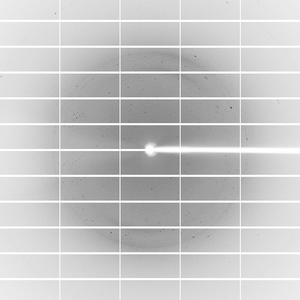

Dataset 133413_2_#####.cbf details

Number of frames 480 (1 - 480)
Distance [mm] 500.0
Oscillation width [°] 0.25
Phi [°] 93.0
Wavelength [Å] 0.97930
Experiment Date 2014-03-27
Equipment BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
