Diffraction project datasets MI0823AY_3qkx
Project details
| Title |

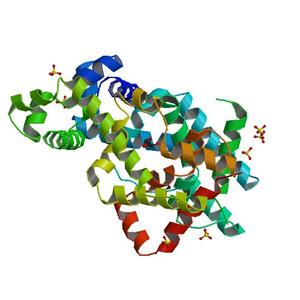

Crystal structure of a TetR-family transcriptional regulator (HI0893) from Haemophilus influenzae RD at 2.35 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.22 / 0.25 |
| Unit cell edges [Å] |
71.16 x
71.16 x
159.33
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

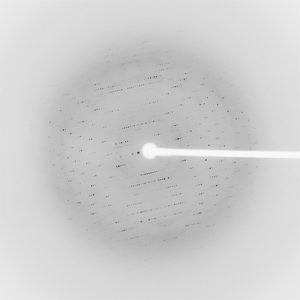

Dataset 149142_1_E1_####.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
350.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
248.0 |
| Wavelength [Å] |
0.97954 |
| Experiment Date |
2010-02-11 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

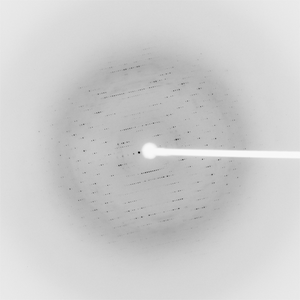

Dataset 149142_1_E2_####.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
350.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
248.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2010-02-11 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
Dataset 149142_2_####.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
350.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
248.0 |
| Wavelength [Å] |
0.97917 |
| Experiment Date |
2010-02-11 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
