Diffraction project datasets MI11708B_3nqo
- Method: SAD
- Resolution: 2.2 Å
- Space group: P 21 21 21
PDB website for 3NQO
PDB validation report for 3NQO
doi:10.18430/M33NQO
Project details

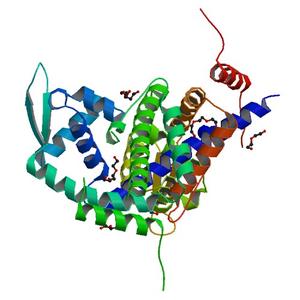

| Title | Crystal structure of a MarR family transcriptional regulator (CD1569) from Clostridium difficile 630 at 2.20 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.20 / 0.24 |
| Unit cell edges [Å] | 69.74 x 72.67 x 76.07 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

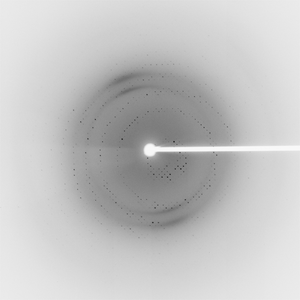

Dataset 149915_1_####.mccd details
| Number of frames | 150 (1 - 150) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 68.0 |
| Wavelength [Å] | 0.97911 |
| Experiment Date | 2010-03-12 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

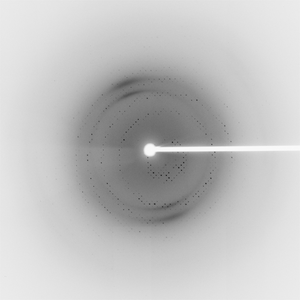

Dataset 149915_2_####.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 68.0 |
| Wavelength [Å] | 0.91837 |
| Experiment Date | 2010-03-12 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
