Diffraction project datasets MJ0831A_3lul
- Method: MAD
- Resolution: 1.78 Å
- Space group: P 21 21 2
PDB website for 3LUL
PDB validation report for 3LUL
doi:10.18430/M33LUL
Project details
| Title | Crystal structure of Putative 4-amino-4-deoxychorismate lyase. (YP_094631.1) from Legionella pneumophila subsp. pneumophila str. Philadelphia 1 at 1.78 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.16 / 0.20 |
| Unit cell edges [Å] | 85.01 x 98.50 x 64.60 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

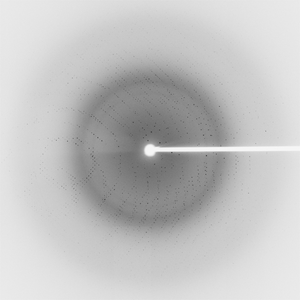

Dataset 139422_1_E1_####.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 270.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 220.0 |
| Wavelength [Å] | 0.97951 |
| Experiment Date | 2009-11-06 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

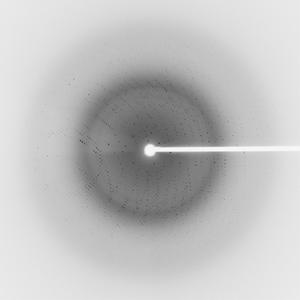

Dataset 139422_1_E2_####.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 270.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 220.0 |
| Wavelength [Å] | 0.91837 |
| Experiment Date | 2009-11-06 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
