Diffraction project datasets MJ11245A_3oql
Project details
| Title |

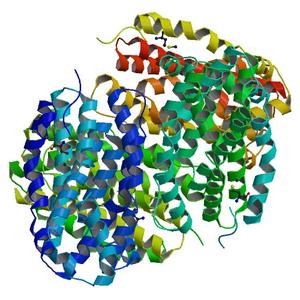

Crystal structure of a TenA homolog (PSPTO1738) from Pseudomonas syringae pv. tomato str. DC3000 at 2.54 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.18 / 0.20 |
| Unit cell edges [Å] |
67.34 x
67.34 x
479.13
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

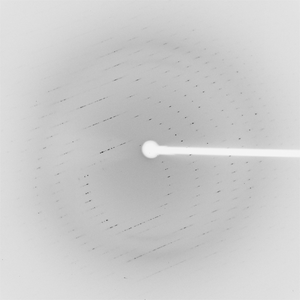

Dataset 156851_1_E1_####.mccd details
| Number of frames |
100 (1 - 100) |
| Distance [mm] |
420.0 |
| Oscillation width [°] |
0.20 |
| Phi [°] |
295.0 |
| Wavelength [Å] |
0.97922 |
| Experiment Date |
2010-06-10 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

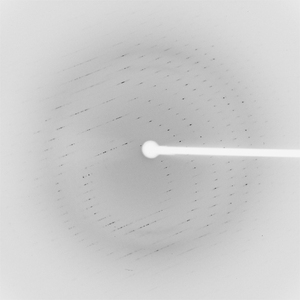

Dataset 156851_1_E2_####.mccd details
| Number of frames |
100 (1 - 100) |
| Distance [mm] |
420.0 |
| Oscillation width [°] |
0.20 |
| Phi [°] |
295.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2010-06-10 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

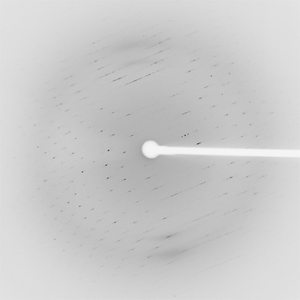

Dataset 156851_2_E1_####.mccd details
| Number of frames |
375 (1 - 375) |
| Distance [mm] |
420.0 |
| Oscillation width [°] |
0.20 |
| Phi [°] |
315.0 |
| Wavelength [Å] |
0.97922 |
| Experiment Date |
2010-06-10 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

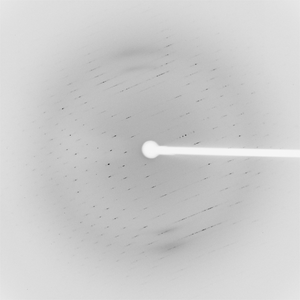

Dataset 156851_2_E2_####.mccd details
| Number of frames |
375 (1 - 375) |
| Distance [mm] |
420.0 |
| Oscillation width [°] |
0.20 |
| Phi [°] |
315.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2010-06-10 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

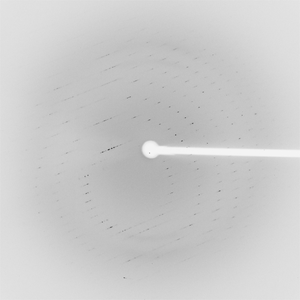

Dataset 156851_3_####.mccd details
| Number of frames |
375 (1 - 375) |
| Distance [mm] |
420.0 |
| Oscillation width [°] |
0.20 |
| Phi [°] |
295.0 |
| Wavelength [Å] |
0.97898 |
| Experiment Date |
2010-06-10 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
