Diffraction project datasets MysmA_00272_a_A1_7s5m
- Resolution: 2.25 Å
- Space group: P 1 21 1
PDB website for 7S5M
PDB validation report for 7S5M
doi:10.18430/m37s5m
Project details

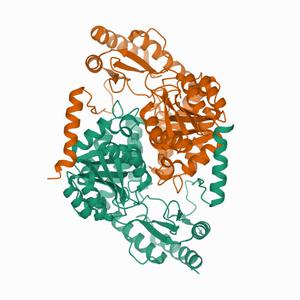

| Title | Crystal Structure of a 8-amino-7-oxononanoate synthase/2-amino-3-ketobutyrate coenzyme A ligase from Mycobacterium smegmatis |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.23 / 0.27 |
| Unit cell edges [Å] | 60.71 x 108.94 x 108.34 |
| Unit cell angles [°] | 90.0, 94.7, 90.0 |

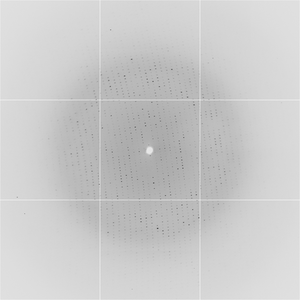

Dataset dbw4_1_1_###.img details
| Number of frames | 219 (1 - 219) |
| Distance [mm] | 320.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | 1.0 |
| Phi [°] | 1.0 |
| Wavelength [Å] | 0.97950 |
| Experiment Date | 2010-05-28 |
| Equipment | 5.0.2 at ALS (Advanced Light Source) |
