Diffraction project datasets NB7857A_3ef8
- Method: SAD
- Resolution: 1.5 Å
- Space group: H 3
PDB website for 3EF8
PDB validation report for 3EF8
doi:10.18430/M33EF8
Project details

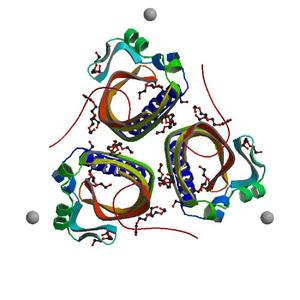

| Title | Crystal structure of Putative Scyalone Dehydratase (YP_496742.1) from NOVOSPHINGOBIUM AROMATICIVORANS DSM 12444 at 1.50 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.16 / 0.19 |
| Unit cell edges [Å] | 59.85 x 59.85 x 237.50 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

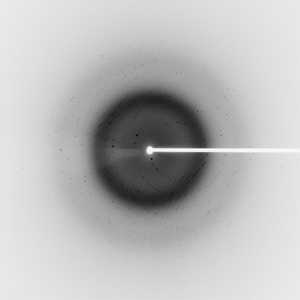

Dataset 76975_1_###.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 1.00 |
| Wavelength [Å] | 0.97905 |
| Experiment Date | 2008-02-22 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
Dataset 76975_2_###.mccd details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 180.0 |
| Wavelength [Å] | 0.97905 |
| Experiment Date | 2008-02-22 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
