Diffraction project datasets NP_422278.1_4q20
- Method: MAD
- Resolution: 2.5 Å
- Space group: P 31 2 1
PDB website for 4Q20
doi:10.18430/M34Q20
Project details

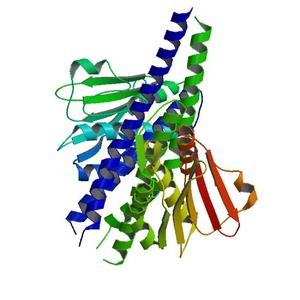

| Title | Crystal structure of a C-terminal part of tyrosine kinase (DivL) from Caulobacter crescentus CB15 at 2.50 A resolution (PSI Community Target, Shapiro) |
| Authors | Childers, W.S., Xu, Q., Mann, T.H., Mathews, I.I., Blair, J.A., Deacon, A.M., Shapiro, L. |
| R / Rfree | 0.20 / 0.23 |
| Unit cell edges [Å] | 69.53 x 69.53 x 194.42 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |
Dataset B3Au1_1_E1_#####.cbf details
| Number of frames | 320 (1 - 320) |
| Distance [mm] | 450.0 |
| Oscillation width [°] | 0.30 |
| Phi [°] | 180.0 |
| Wavelength [Å] | 1.03970 |
| Experiment Date | 2011-03-28 |
| Equipment | BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

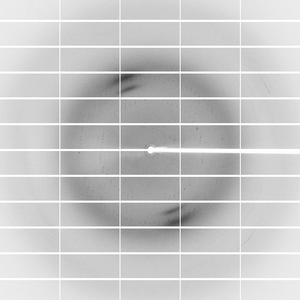

Dataset B3Au1_1_E2_#####.cbf details
| Number of frames | 320 (1 - 320) |
| Distance [mm] | 450.0 |
| Oscillation width [°] | 0.30 |
| Phi [°] | 180.0 |
| Wavelength [Å] | 0.87310 |
| Experiment Date | 2011-03-28 |
| Equipment | BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

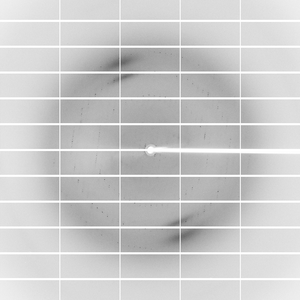

Dataset B3Au1_1_E3_#####.cbf details
| Number of frames | 320 (1 - 320) |
| Distance [mm] | 450.0 |
| Oscillation width [°] | 0.30 |
| Phi [°] | 180.0 |
| Wavelength [Å] | 1.04000 |
| Experiment Date | 2011-03-28 |
| Equipment | BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

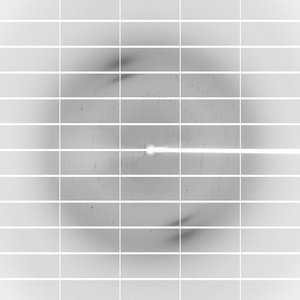

Dataset B3Au1_2_#####.cbf details
| Number of frames | 320 (1 - 320) |
| Distance [mm] | 450.0 |
| Oscillation width [°] | 0.30 |
| Phi [°] | 180.0 |
| Wavelength [Å] | 1.04360 |
| Experiment Date | 2011-03-28 |
| Equipment | BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
