Diffraction project datasets NegoA_00734_a_B1-apo_5tev
- Resolution: 2.25 Å
- Space group: P 32 2 1
PDB website for 5TEV
PDB validation report for 5TEV
doi:10.18430/m35tev
Project details

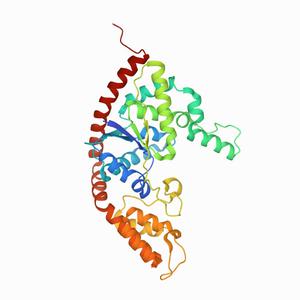

| Title | Crystal structure of a tryptophanyl-tRNA synthetase from Neisseria gonorrhoeae, apo |
| Authors | Seattle Structural Genomics Center for Infectious Disease, Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.18 / 0.24 |
| Unit cell edges [Å] | 59.94 x 59.94 x 355.62 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

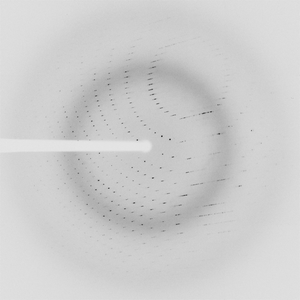

Dataset uev6-8.### details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 260.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 60.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2016-08-23 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |

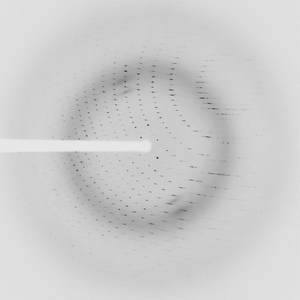

Dataset uev6-8b.### details
| Number of frames | 119 (1 - 119) |
| Distance [mm] | 260.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 120.5 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2016-08-23 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
