Diffraction project datasets PD04303G_2h9f
- Method: SAD
- Resolution: 1.95 Å
- Space group: I 41 2 2
PDB website for 2H9F
PDB validation report for 2H9F
doi:10.18430/M32H9F
Project details

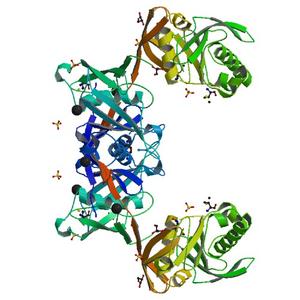

| Title | CRYSTAL STRUCTURE OF a PrpF family methylaconitate isomerase (PA0793) FROM PSEUDOMONAS AERUGINOSA AT 1.95 A RESOLUTION |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.17 / 0.20 |
| Unit cell edges [Å] | 148.69 x 148.69 x 141.09 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

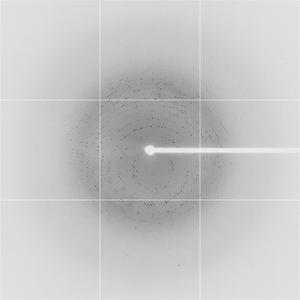

Dataset 25575_1_###.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.25 |
| Phi [°] | 101.0 |
| Wavelength [Å] | 0.97624 |
| Equipment | BL1-5 at SSRL (Stanford Synchrotron Radiation Laboratory) |

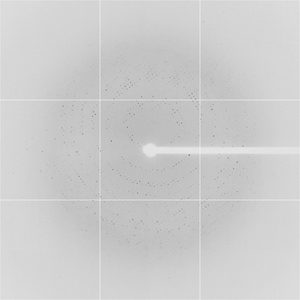

Dataset 25575_2_###.img details
| Number of frames | 91 (1 - 91) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 109.8 |
| Wavelength [Å] | 0.97624 |
| Equipment | BL1-5 at SSRL (Stanford Synchrotron Radiation Laboratory) |
