Diffraction project datasets PD07049G_2ou3

  • Method: MAD
  • Resolution: 1.85 Å
  • Space group: P 21 21 21
Download all images (2.1 GB)

PDB website for 2OU3
PDB validation report for 2OU3

doi:10.18430/M32OU3

Project details

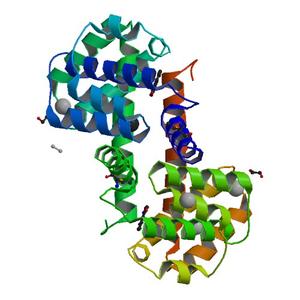

Title Crystal structure of a tellurite resistance protein of cog3793 (npun_f6341) from nostoc punctiforme pcc 73102 at 1.85 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.21
Unit cell edges [Å] 38.49 x 56.19 x 152.30
Unit cell angles [°] 90.0, 90.0, 90.0

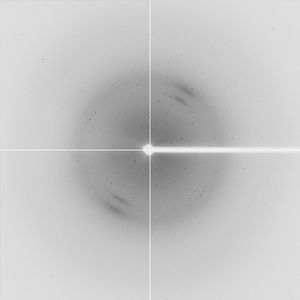

Dataset 40976_1_E1_###.img details

Number of frames 200 (1 - 200)
Distance [mm] 160.0
Oscillation width [°] 0.50
Phi [°] 56.0
Wavelength [Å] 0.97931
Equipment BL1-5 at SSRL (Stanford Synchrotron Radiation Laboratory)

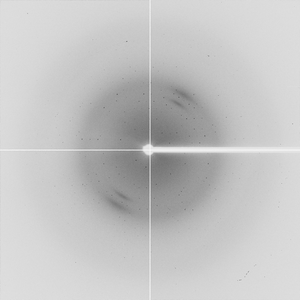

Dataset 40976_1_E2_###.img details

Number of frames 200 (1 - 200)
Distance [mm] 160.0
Oscillation width [°] 0.50
Phi [°] 56.0
Wavelength [Å] 0.91163
Equipment BL1-5 at SSRL (Stanford Synchrotron Radiation Laboratory)

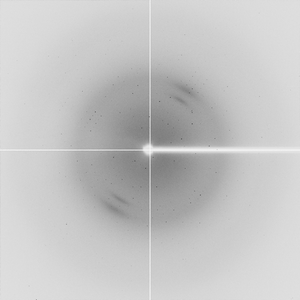

Dataset 40976_2_###.img details

Number of frames 200 (1 - 200)
Distance [mm] 160.0
Oscillation width [°] 0.50
Phi [°] 56.0
Wavelength [Å] 0.97905
Equipment BL1-5 at SSRL (Stanford Synchrotron Radiation Laboratory)
