Diffraction project datasets PE00035A_2okf
- Method: MAD
- Resolution: 1.6 Å
- Space group: P 31
PDB website for 2OKF
PDB validation report for 2OKF
doi:10.18430/M32OKF
Project details
| Title | CRYSTAL STRUCTURE OF A FDXN ELEMENT EXCISION CONTROLLING FACTOR PROTEIN (AVA_3312) FROM ANABAENA VARIABILIS AT 1.60 A RESOLUTION |
| Authors | Hwang, W.C., Golden, J.W., Pascual, J., Xu, D., Cheltsov, A., Godzik, A. |
| Bioentity | None |
| R / Rfree | 0.14 / 0.16 |
| Unit cell edges [Å] | 59.81 x 59.81 x 73.19 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

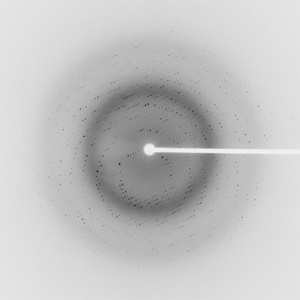

Dataset 38347_1_E1_###.mccd details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 225.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 106.0 |
| Wavelength [Å] | 0.97937 |
| Experiment Date | 2006-12-18 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

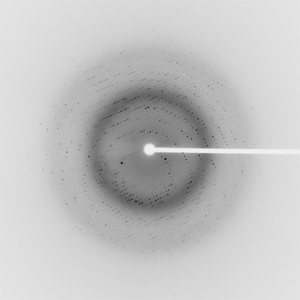

Dataset 38347_1_E2_###.mccd details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 225.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 106.0 |
| Wavelength [Å] | 0.91162 |
| Experiment Date | 2006-12-18 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

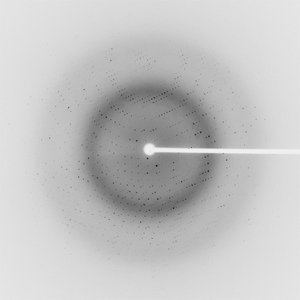

Dataset 38347_2_###.mccd details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 225.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 136.0 |
| Wavelength [Å] | 0.97905 |
| Experiment Date | 2006-12-18 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
