Diffraction project datasets PE00057A_2nvm
- Method: MAD
- Resolution: 2.19 Å
- Space group: P 61 2 2
PDB website for 2NVM
PDB validation report for 2NVM
doi:10.18430/M32NVM
Project details

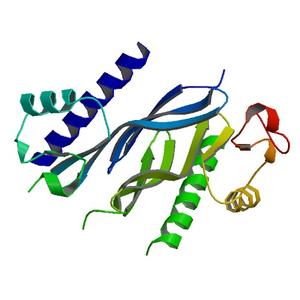

| Title | Crystal structure of fdxN element excision controlling factor XisI (YP_321976.1) from Anabaena Variabilis ATCC 29413 at 2.19 A resolution |
| Authors | Hwang, W.C., Golden, J.W., Pascual, J., Xu, D., Cheltsov, A., Godzik, A. |
| Bioentity | None |
| R / Rfree | 0.20 / 0.24 |
| Unit cell edges [Å] | 122.44 x 122.44 x 77.08 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

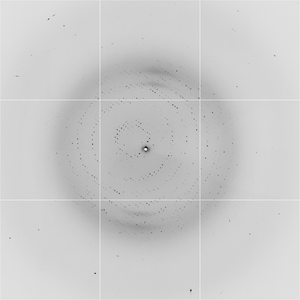

Dataset 32722_1_E1_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 140.0 |
| Wavelength [Å] | 0.97950 |
| Experiment Date | 2006-09-13 |
| Equipment | 8.2.2 at ALS (Advanced Light Source) |

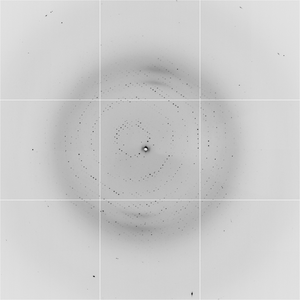

Dataset 32722_1_E2_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 140.0 |
| Wavelength [Å] | 1.00000 |
| Experiment Date | 2006-09-13 |
| Equipment | 8.2.2 at ALS (Advanced Light Source) |

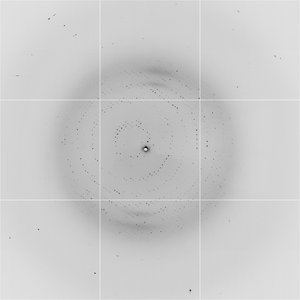

Dataset 32722_2_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 140.0 |
| Wavelength [Å] | 0.97920 |
| Experiment Date | 2006-09-13 |
| Equipment | 8.2.2 at ALS (Advanced Light Source) |
