Diffraction project datasets PJ05114C_3bww

  • Method: MAD
  • Resolution: 2.2 Å
  • Space group: P 21 21 21
Download all images (2.3 GB)

PDB website for 3BWW
PDB validation report for 3BWW

doi:10.18430/M33BWW

Project details

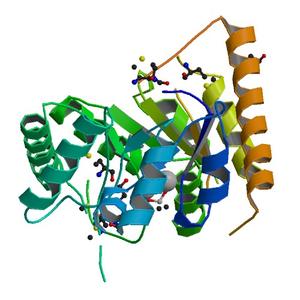

Title Crystal structure of a duf692 family protein (hs_1138) from haemophilus somnus 129pt at 2.20 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.26
Unit cell edges [Å] 53.57 x 65.99 x 95.58
Unit cell angles [°] 90.0, 90.0, 90.0

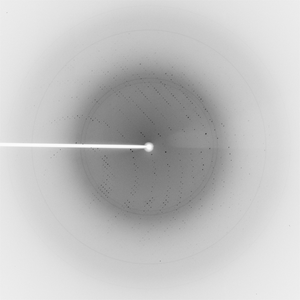

Dataset 62940_1_E1.#### details

Number of frames 45 (1 - 45)
Distance [mm] 250.0
Oscillation width [°] 2.00
Phi [°] 220.0
Wavelength [Å] 0.97953
Experiment Date 2007-10-27
Equipment 23-ID-D at APS (Advanced Photon Source)

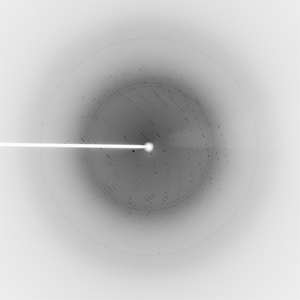

Dataset 62940_1_E2.#### details

Number of frames 45 (1 - 45)
Distance [mm] 250.0
Oscillation width [°] 2.00
Phi [°] 220.0
Wavelength [Å] 0.91840
Experiment Date 2007-10-27
Equipment 23-ID-D at APS (Advanced Photon Source)

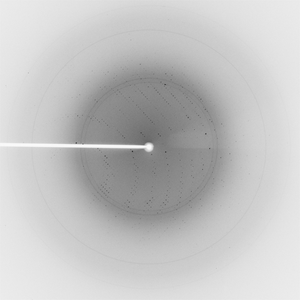

Dataset 62940_2.#### details

Number of frames 45 (1 - 45)
Distance [mm] 250.0
Oscillation width [°] 2.00
Phi [°] 220.0
Wavelength [Å] 0.97939
Experiment Date 2007-10-27
Equipment 23-ID-D at APS (Advanced Photon Source)
