Diffraction project datasets PK14342A_3fkq
- Method: MAD
- Resolution: 2.1 Å
- Space group: C 1 2 1
PDB website for 3FKQ
PDB validation report for 3FKQ
doi:10.18430/M33FKQ
Project details

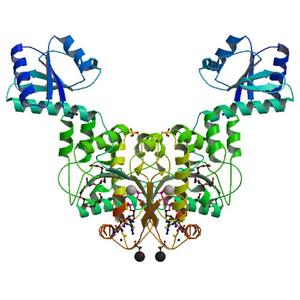

| Title | Crystal structure of NtrC-like two-domain protein (RER070207001320) from Eubacterium rectale at 2.10 A resolution |
| Authors | Xu, Q., Christen, B., Chiu, H.J., Jaroszewski, L., Klock, H.E., Knuth, M.W., Miller, M.D., Elsliger, M.A., Deacon, A.M., Godzik, A., Lesley, S.A., Figurski, D.H., Shapiro, L., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.19 / 0.22 |
| Unit cell edges [Å] | 121.51 x 79.50 x 55.02 |
| Unit cell angles [°] | 90.0, 96.2, 90.0 |

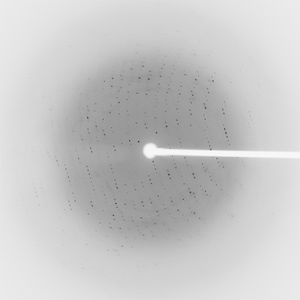

Dataset 99202_1_E1_###.mccd details
| Number of frames | 155 (1 - 155) |
| Distance [mm] | 290.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 320.0 |
| Wavelength [Å] | 0.97908 |
| Experiment Date | 2008-11-13 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
Dataset 99202_1_E2_###.mccd details
| Number of frames | 155 (1 - 155) |
| Distance [mm] | 290.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 320.0 |
| Wavelength [Å] | 0.91837 |
| Experiment Date | 2008-11-13 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

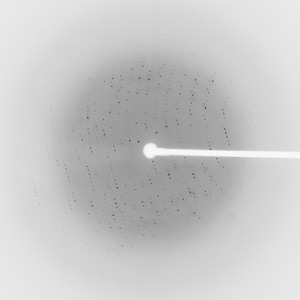

Dataset 99202_2_###.mccd details
| Number of frames | 155 (1 - 155) |
| Distance [mm] | 290.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 320.0 |
| Wavelength [Å] | 0.97845 |
| Experiment Date | 2008-11-13 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
