Diffraction project datasets PU6302B_3e98
- Method: MAD
- Resolution: 2.43 Å
- Space group: P 1 21 1
PDB website for 3E98
PDB validation report for 3E98
doi:10.18430/M33E98
Project details

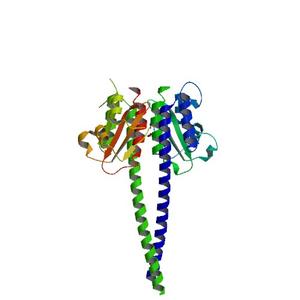

| Title | CRYSTAL STRUCTURE OF a GAF domain containing protein that belongs to Pfam DUF484 family (PA5279) FROM PSEUDOMONAS AERUGINOSA AT 2.43 A RESOLUTION |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.21 / 0.27 |
| Unit cell edges [Å] | 53.84 x 88.11 x 60.96 |
| Unit cell angles [°] | 90.0, 107.9, 90.0 |

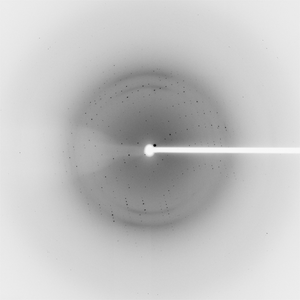

Dataset 70622_1_E1_###.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 32.0 |
| Wavelength [Å] | 0.97975 |
| Experiment Date | 2008-01-13 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

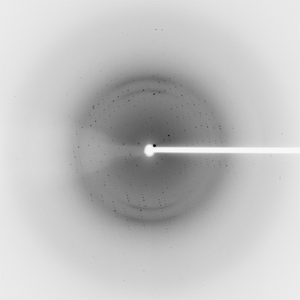

Dataset 70622_1_E2_###.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 32.0 |
| Wavelength [Å] | 0.91837 |
| Experiment Date | 2008-01-13 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
