Diffraction project datasets PX15624A_3gzr
- Method: SAD
- Resolution: 1.4 Å
- Space group: P 65
PDB website for 3GZR
PDB validation report for 3GZR
doi:10.18430/M33GZR
Project details

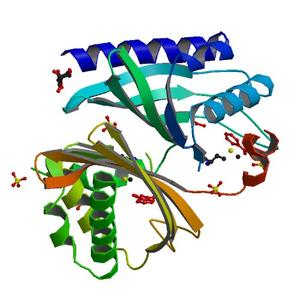

| Title | CRYSTAL STRUCTURE OF AN UNCHARACTERIZED PROTEIN WITH A CYSTATIN-LIKE FOLD (CC_2572) FROM CAULOBACTER VIBRIOIDES AT 1.40 A RESOLUTION |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.14 / 0.15 |
| Unit cell edges [Å] | 71.82 x 71.82 x 121.39 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

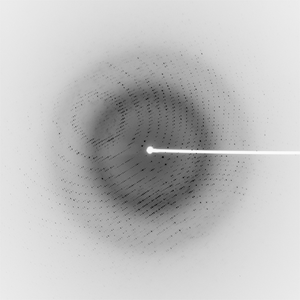

Dataset 108894_1_###.mccd details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 354.0 |
| Wavelength [Å] | 0.97833 |
| Experiment Date | 2009-02-19 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

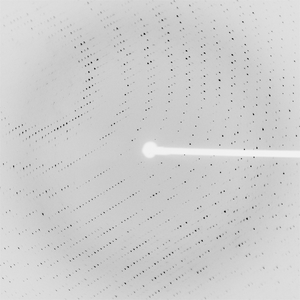

Dataset 108894_2_###.mccd details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 450.1 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 354.0 |
| Wavelength [Å] | 0.97833 |
| Experiment Date | 2009-02-19 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
