Diffraction project datasets PX6706A_3gxh
- Method: SAD
- Resolution: 1.4 Å
- Space group: P 21 21 21
PDB website for 3GXH
PDB validation report for 3GXH
doi:10.18430/M33GXH
Project details

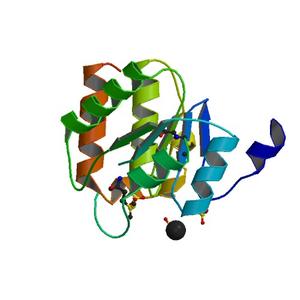

| Title | Crystal structure of Putative phosphatase (DUF442) (YP_001181608.1) from SHEWANELLA PUTREFACIENS CN-32 at 1.40 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.16 / 0.18 |
| Unit cell edges [Å] | 57.30 x 57.53 x 92.36 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

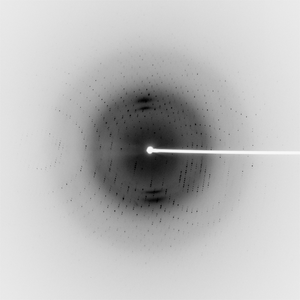

Dataset 108765_1_###.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 316.0 |
| Wavelength [Å] | 0.97828 |
| Experiment Date | 2009-02-18 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

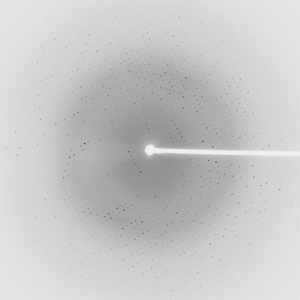

Dataset 108765_2_###.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 46.0 |
| Wavelength [Å] | 0.97828 |
| Experiment Date | 2009-02-18 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
