Diffraction project datasets RC4044A_4rbo
- Method: Molecular Replacement
- Resolution: 3.3 Å
- Space group: P 65 2 2
PDB website for 4RBO
PDB validation report for 4RBO
doi:10.18430/M34RBO
Project details

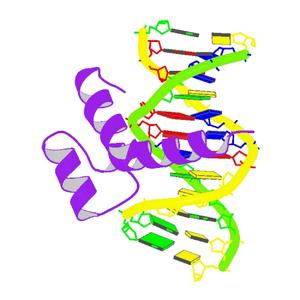

| Title | Crystal structure of a Nanog homeobox (NANOG) from Homo sapiens at 3.30 A resolution |
| Authors | Hayashi, Y., Caboni, L., Das, D., Yumoto, F., Clayton, T., Deller, M.C., Nguyen, P., Farr, C.L., Chiu, H.J., Miller, M.D., Elsliger, M.A., Deacon, A.M., Godzik, A., Lesley, S.A., Tomoda, K., Conklin, B.R., Wilson, I.A., Yamanaka, S., Fletterick, R.J. |
| Bioentity | None |
| R / Rfree | 0.24 / 0.27 |
| Unit cell edges [Å] | 215.60 x 215.60 x 42.27 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

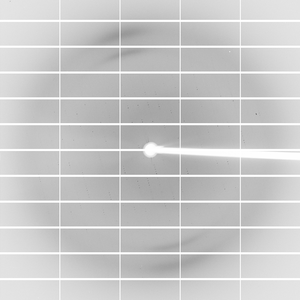

Dataset 192962_1_#####.cbf details
| Number of frames | 70 (1 - 70) |
| Distance [mm] | 600.2 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 256.0 |
| Wavelength [Å] | 1.00000 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
