Diffraction project datasets RFXANK_241642_6mew
- Resolution: 1.78 Å
- Space group: P 1 21 1
PDB website for 6MEW
PDB validation report for 6MEW
doi:10.18430/m36mew
Project details

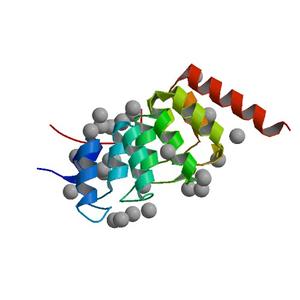

| Title | RFXANK ankyrin repeats in complex with a RFX7 peptide |
| Authors | Tempel, W., Xu, C., Dong, A., Li, Y., Bountra, C., Arrowsmith, C.H., Edwards, A.M., Min, J., Structural Genomics Consortium (SGC) |
| R / Rfree | 0.18 / 0.22 |
| Unit cell edges [Å] | 64.23 x 29.87 x 97.89 |
| Unit cell angles [°] | 90.0, 102.1, 90.0 |

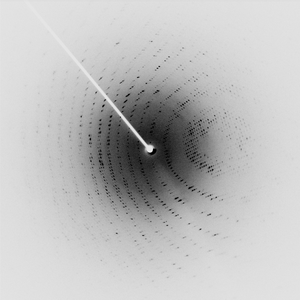

Dataset chi30_####.osc details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 120.0 |
| Oscillation width [°] | 1.00 |
| Kappa / Chi [°] | 30.0 |
| Wavelength [Å] | 1.54178 |
| Experiment Date | 2013-05-22 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |

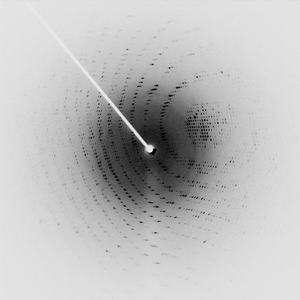

Dataset r1_####.osc details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 120.0 |
| Oscillation width [°] | 1.00 |
| Wavelength [Å] | 1.54178 |
| Experiment Date | 2013-05-21 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
