Diffraction project datasets RiprA_00029_a_A1_6nup

  • Resolution: 1.6 Å
  • Space group: P 21 21 21
Download all images (1.9 GB)

PDB website for 6NUP
PDB validation report for 6NUP

doi:10.18430/m36nup

Project details

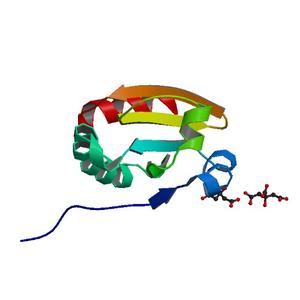

Title Structure of thioredoxin (trxA) from Rickettsia prowazekii str. Madrid E.
Authors Seattle Structural Genomics Center for Infectious Disease (SSGCID)
R / Rfree 0.16 / 0.21
Unit cell edges [Å] 32.74 x 45.16 x 60.93
Unit cell angles [°] 90.0, 90.0, 90.0

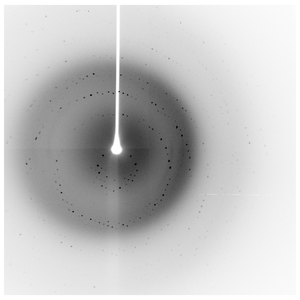

Dataset uwk6-15_x2_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -78.0
Phi [°] 180.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

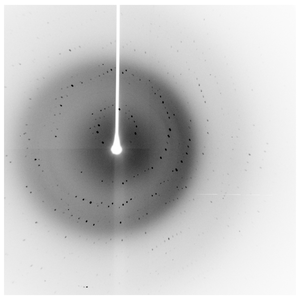

Dataset uwk6-15_x_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -78.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

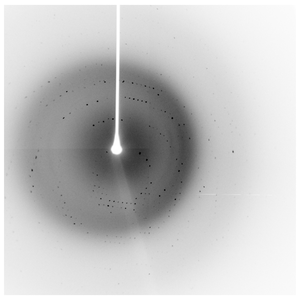

Dataset uwk6-15_y2_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -78.0
Kappa / Chi [°] 15.0
Phi [°] 180.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

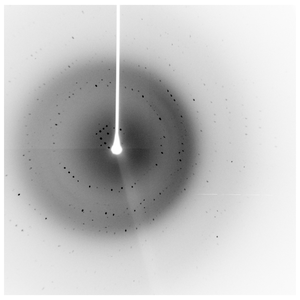

Dataset uwk6-15_y_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -78.0
Kappa / Chi [°] 15.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
