Diffraction project datasets SP13193I_4ipb

  • Method: MAD
  • Resolution: 1.62 Å
  • Space group: P 1 21 1
Download all images (6.2 GB)

PDB website for 4IPB
PDB validation report for 4IPB

doi:10.18430/M34IPB

Project details

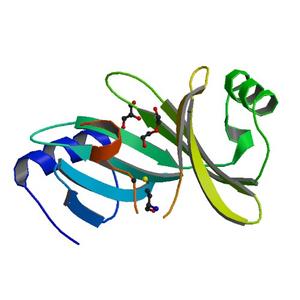

Title Crystal structure of a DUF2874 family protein (BACOVA_02504) from Bacteroides ovatus ATCC 8483 at 1.62 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.17 / 0.20
Unit cell edges [Å] 41.26 x 54.15 x 60.12
Unit cell angles [°] 90.0, 91.4, 90.0

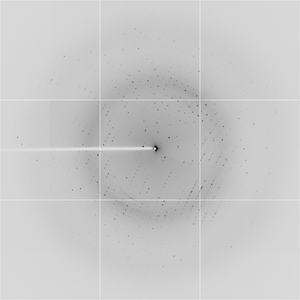

Dataset 188547_1_E1_###.img details

Number of frames 360 (1 - 360)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 289.0
Wavelength [Å] 0.97942
Experiment Date 2012-11-21
Equipment 8.2.2 at ALS (Advanced Light Source)

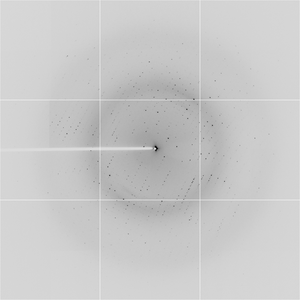

Dataset 188547_1_E2_###.img details

Number of frames 360 (1 - 360)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 289.0
Wavelength [Å] 0.91840
Experiment Date 2012-11-21
Equipment 8.2.2 at ALS (Advanced Light Source)

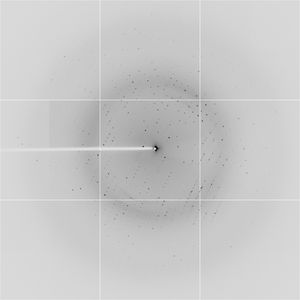

Dataset 188547_2_###.img details

Number of frames 360 (1 - 360)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 289.0
Wavelength [Å] 0.97926
Experiment Date 2012-11-21
Equipment 8.2.2 at ALS (Advanced Light Source)
