Diffraction project datasets SP16782A_4qhx

  • Method: MAD
  • Resolution: 1.8 Å
  • Space group: H 3
Download all images (10.0 GB)

PDB website for 4QHX
PDB validation report for 4QHX

doi:10.18430/M34QHX

Project details

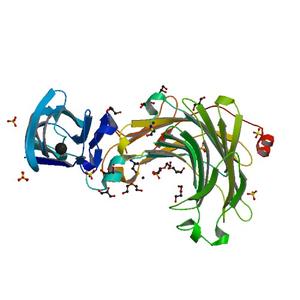

Title Crystal structure of a putative two-domain sugar hydrolase (BACCAC_02064) from Bacteroides caccae ATCC 43185 at 1.80 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.15 / 0.18
Unit cell edges [Å] 110.04 x 110.04 x 105.56
Unit cell angles [°] 90.0, 90.0, 120.0

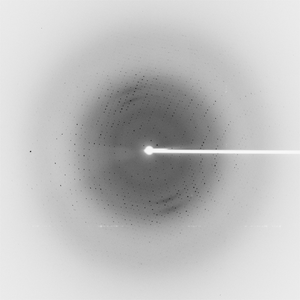

Dataset 204838_1_E1_#####.mccd details

Number of frames 240 (1 - 240)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 290.0
Wavelength [Å] 0.97934
Experiment Date 2014-04-04
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

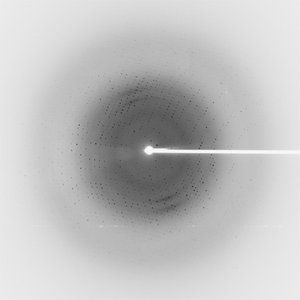

Dataset 204838_1_E2_#####.mccd details

Number of frames 240 (1 - 240)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 290.0
Wavelength [Å] 0.95369
Experiment Date 2014-04-04
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

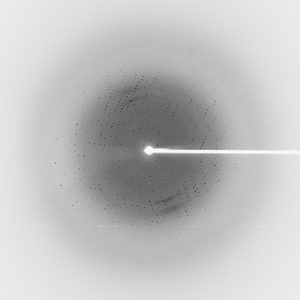

Dataset 204838_2_#####.mccd details

Number of frames 240 (1 - 240)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 290.0
Wavelength [Å] 0.97913
Experiment Date 2014-04-04
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
