Diffraction project datasets SP17984B_4qpv
- Method: MAD
- Resolution: 1.8 Å
- Space group: P 21 21 21
PDB website for 4QPV
PDB validation report for 4QPV
doi:10.18430/M34QPV
Project details

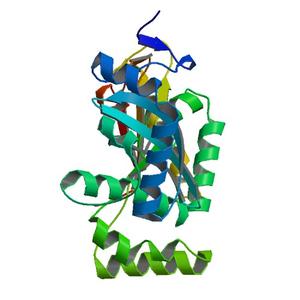

| Title | Crystal structure of a DUF1672 family protein (SAV1486) from Staphylococcus aureus subsp. aureus Mu50 at 1.80 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.18 / 0.22 |
| Unit cell edges [Å] | 58.54 x 107.57 x 112.81 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

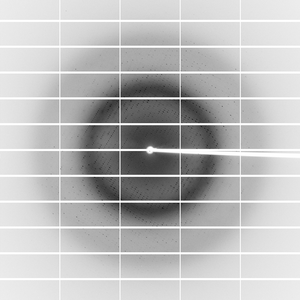

Dataset 201817_1_#####.cbf details
| Number of frames | 400 (1 - 400) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.35 |
| Phi [°] | 40.0 |
| Wavelength [Å] | 0.97830 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

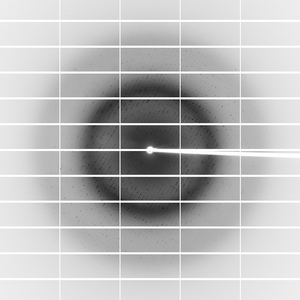

Dataset 201817_2_#####.cbf details
| Number of frames | 400 (1 - 400) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.35 |
| Phi [°] | 40.0 |
| Wavelength [Å] | 0.97898 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
