Diffraction project datasets SP18005A_4l1n
- Method: SAD
- Resolution: 2.7 Å
- Space group: H 3 2
PDB website for 4L1N
PDB validation report for 4L1N
doi:10.18430/M34L1N
Project details

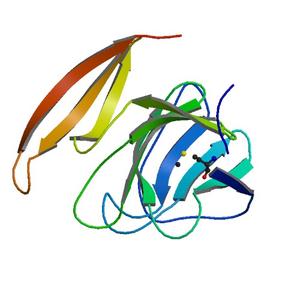

| Title | Crystal structure of a putative conserved lipoprotein (NT01CX_1156) from Clostridium novyi NT at 2.70 A resolution |
| Authors | JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG) |
| Bioentity | None |
| R / Rfree | 0.20 / 0.20 |
| Unit cell edges [Å] | 146.87 x 146.87 x 125.97 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

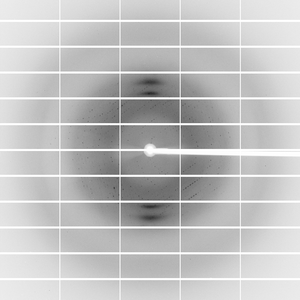

Dataset 178432_1_#####.cbf details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 130.0 |
| Wavelength [Å] | 0.97940 |
| Experiment Date | 2012-05-31 |
| Equipment | BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

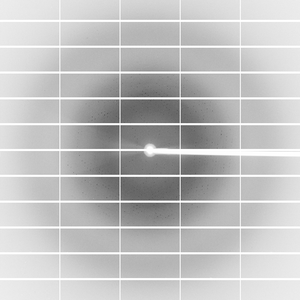

Dataset 178432_2_#####.cbf details
| Number of frames | 30 (1 - 30) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 221.0 |
| Wavelength [Å] | 0.97940 |
| Experiment Date | 2012-05-31 |
| Equipment | BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
