Diffraction project datasets SP19058B_3n5l
- Method: MAD
- Resolution: 1.97 Å
- Space group: P 32 2 1
PDB website for 3N5L
PDB validation report for 3N5L
doi:10.18430/M33N5L
Project details

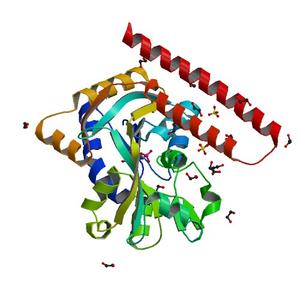

| Title | Crystal structure of a binding protein component of ABC phosphonate transporter (PA3383) from Pseudomonas aeruginosa at 1.97 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.16 / 0.19 |
| Unit cell edges [Å] | 98.89 x 98.89 x 170.79 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

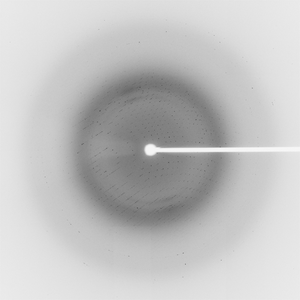

Dataset 153915_1_E1_####.mccd details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 254.0 |
| Wavelength [Å] | 0.97936 |
| Experiment Date | 2010-05-13 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

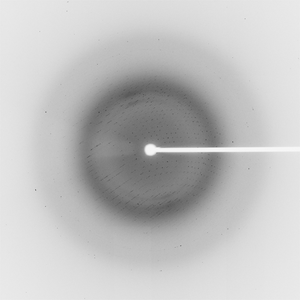

Dataset 153915_1_E2_####.mccd details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 254.0 |
| Wavelength [Å] | 0.91837 |
| Experiment Date | 2010-05-13 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
