Diffraction project datasets SP19257A_5cnl
Project details
| Title |

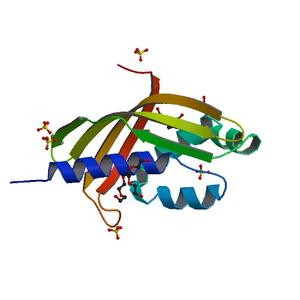

Crystal structure of an IcmL-like type IV secretion system protein (lpg0120) from Legionella pneumophila subsp. pneumophila str. Philadelphia 1 at 2.65 A resolution |
| Authors |
JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.19 / 0.22 |
| Unit cell edges [Å] |
83.38 x
83.38 x
221.83
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

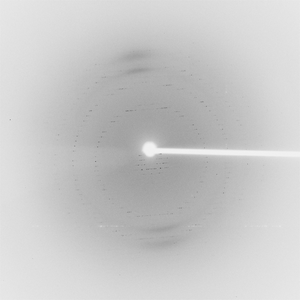

Dataset 210571_1_E1_#####.mccd details
| Number of frames |
240 (1 - 240) |
| Distance [mm] |
380.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
83.0 |
| Wavelength [Å] |
0.97930 |
| Experiment Date |
2015-03-25 |
| Equipment |
BL14-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

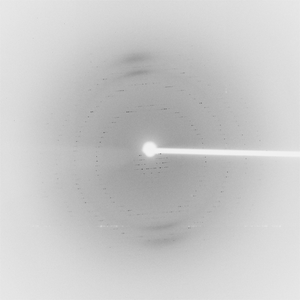

Dataset 210571_1_E2_#####.mccd details
| Number of frames |
240 (1 - 240) |
| Distance [mm] |
380.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
83.0 |
| Wavelength [Å] |
0.95369 |
| Experiment Date |
2015-03-25 |
| Equipment |
BL14-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
Dataset 210571_2_#####.mccd details
| Number of frames |
240 (1 - 240) |
| Distance [mm] |
380.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
83.0 |
| Wavelength [Å] |
0.97910 |
| Experiment Date |
2015-03-25 |
| Equipment |
BL14-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
