Diffraction project datasets TBC1D7_3qwl

Project details

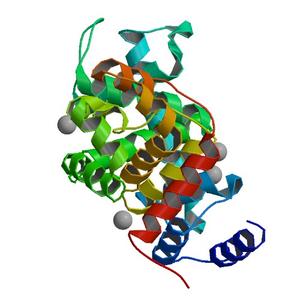

Title Crystal structure of human TBC1 domain family member 7
Authors Guan, X., Tempel, W., Tong, Y., Wernimont, A.K., Landry, R., Arrowsmith, C.H., Edwards, A.M., Bountra, C., Weigelt, J., Park, H.
R / Rfree 0.21 / 0.26
Unit cell edges [Å] 34.57 x 83.98 x 87.68
Unit cell angles [°] 90.0, 90.0, 90.0

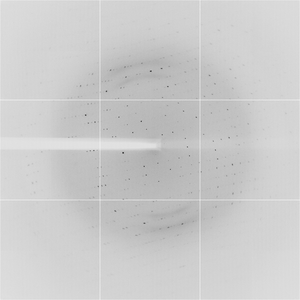

Dataset p1.####.img details

Number of frames 184 (1 - 184)
Distance [mm] 320.0
Oscillation width [°] 1.00
Omega [°] -120.0
Kappa / Chi [°] 0.0003
Phi [°] -0.0178
Wavelength [nm] 0.97918
Experiment Date 2011-02-24
Equipment 19-ID at APS (Advanced Photon Source)

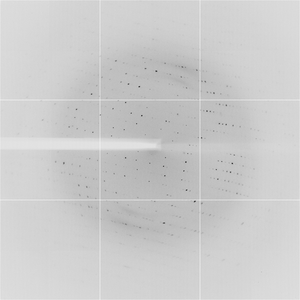

Dataset p2.####.img details

Number of frames 180 (1 - 180)
Distance [mm] 320.1
Oscillation width [°] 1.00
Omega [°] -120.0
Kappa / Chi [°] 0.0003
Phi [°] 179.9729
Wavelength [nm] 0.97918
Experiment Date 2011-02-24
Equipment 19-ID at APS (Advanced Photon Source)

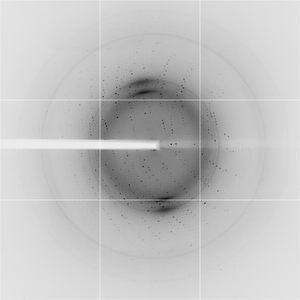

Dataset r1.####.img details

Number of frames 360 (1 - 360)
Distance [mm] 249.9
Oscillation width [°] 0.50
Omega [°] -90.0
Kappa / Chi [°] -0.0001
Phi [°] -0.0178
Wavelength [nm] 0.97929
Experiment Date 2011-02-10
Equipment 19-ID at APS (Advanced Photon Source)
