Diffraction project datasets TDRD2_x237923_6pi7
- Resolution: 2.8 Å
- Space group: P 63
PDB website for 6PI7
PDB validation report for 6PI7
doi:10.18430/m36pi7
Project details

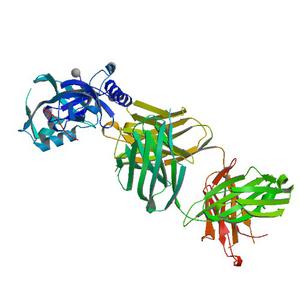

| Title | Crystal structure of the TDRD2 extended Tudor domain in complex with an antibody fragment and the PIWIL1 peptide |
| Authors | Liu, K., Min, J.R., Structural Genomics Consortium (SGC) |
| R / Rfree | 0.19 / 0.21 |
| Unit cell edges [Å] | 148.10 x 148.10 x 168.03 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

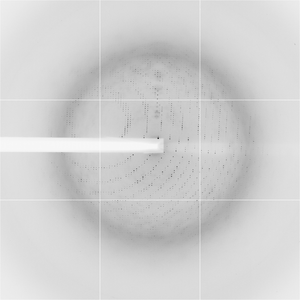

Dataset r1.####.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 349.9 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -60.0 |
| Kappa / Chi [°] | 0.0002 |
| Phi [°] | -0.007 |
| Wavelength [Å] | 0.97934 |
| Experiment Date | 2012-08-16 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
