Diffraction project datasets TM1293_1vlm

  • Method: MAD
  • Resolution: 2.2 Å
  • Space group: P 21 21 2
Download all images (931.0 MB)

PDB website for 1VLM
PDB validation report for 1VLM

doi:10.18430/M31VLM

Project details

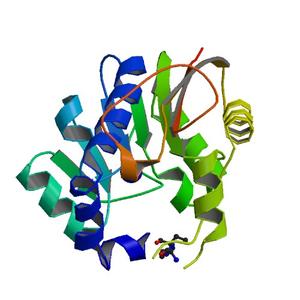

Title Crystal structure of SAM-dependent methyltransferase, possible histamine N-methyltransferase (TM1293) from Thermotoga maritima at 2.20 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.25
Unit cell edges [Å] 65.65 x 70.73 x 93.92
Unit cell angles [°] 90.0, 90.0, 90.0

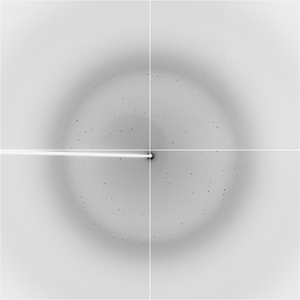

Dataset p1_1_E1_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 220.0
Oscillation width [°] 1.00
Phi [°] 9.0
Wavelength [Å] 1.00320
Experiment Date 2003-12-12
Equipment 8.2.1 at ALS (Advanced Light Source)

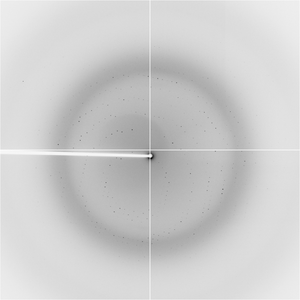

Dataset p1_1_E2_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 220.0
Oscillation width [°] 1.00
Phi [°] 9.0
Wavelength [Å] 0.97960
Experiment Date 2003-12-12
Equipment 8.2.1 at ALS (Advanced Light Source)

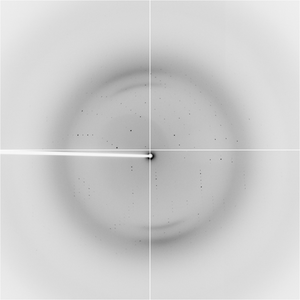

Dataset p1_2_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 220.0
Oscillation width [°] 1.00
Phi [°] 99.0
Wavelength [Å] 0.97940
Experiment Date 2003-12-12
Equipment 8.2.1 at ALS (Advanced Light Source)
