Diffraction project datasets TM1387_2grj

  • Method: MAD
  • Resolution: 2.6 Å
  • Space group: P 1 21 1
Download all images (1.8 GB)

PDB website for 2GRJ
PDB validation report for 2GRJ

doi:10.18430/M32GRJ

Project details

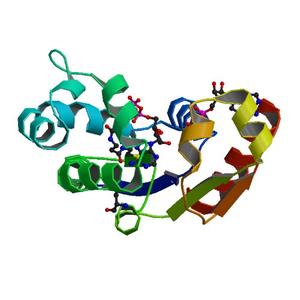

Title Crystal structure of Dephospho-CoA kinase (EC 2.7.1.24) (Dephosphocoenzyme A kinase) (tm1387) from THERMOTOGA MARITIMA at 2.60 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.25
Unit cell edges [Å] 90.83 x 87.22 x 98.59
Unit cell angles [°] 90.0, 106.9, 90.0

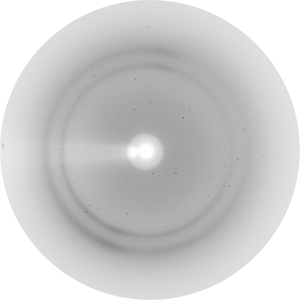

Dataset 5892_E1_1_###.mccd details

Number of frames 165 (1 - 165)
Distance [mm] 200.0
Oscillation width [°] 90.00
Phi [°] -90.0
Wavelength [Å] 0.97900
Experiment Date 2003-07-13
Equipment 14-ID at APS (Advanced Photon Source)

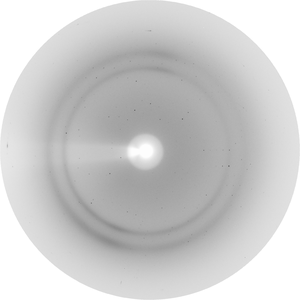

Dataset 5892_E2_1_###.mccd details

Number of frames 165 (1 - 165)
Distance [mm] 200.0
Oscillation width [°] 90.00
Phi [°] -90.0
Wavelength [Å] 0.95400
Experiment Date 2003-07-14
Equipment 14-ID at APS (Advanced Photon Source)

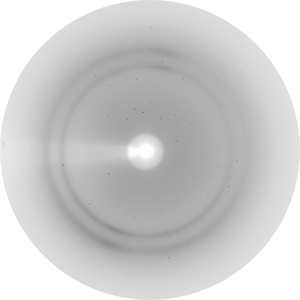

Dataset 5892_E3_1_###.mccd details

Number of frames 152 (1 - 152)
Distance [mm] 200.0
Oscillation width [°] -74.00
Phi [°] 74.0
Wavelength [Å] 0.97900
Experiment Date 2003-07-14
Equipment 14-ID at APS (Advanced Photon Source)
