Diffraction project datasets TM1389_2avn
- Method: MAD
- Resolution: 2.35 Å
- Space group: P 64 2 2
PDB website for 2AVN
PDB validation report for 2AVN
doi:10.18430/M32AVN
Project details

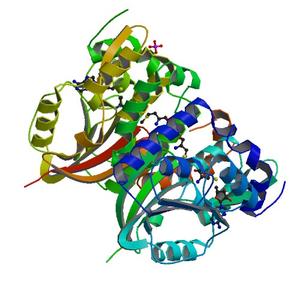

| Title | CRYSTAL STRUCTURE OF A UBIQUINONE/MENAQUINONE BIOSYNTHESIS METHYLTRANSFERASE-RELATED PROTEIN (TM1389) FROM THERMOTOGA MARITIMA MSB8 AT 2.35 A RESOLUTION |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.17 / 0.20 |
| Unit cell edges [Å] | 130.48 x 130.48 x 192.93 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

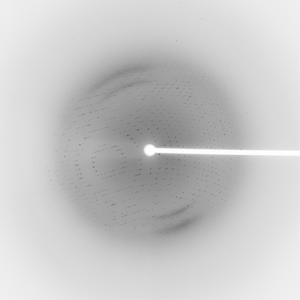

Dataset 17135_1_###.mccd details
| Number of frames | 47 (1 - 47) |
| Distance [mm] | 325.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 100.0 |
| Wavelength [Å] | 0.97915 |
| Experiment Date | 2005-07-04 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

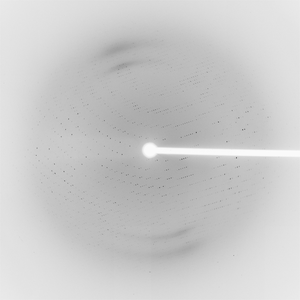

Dataset 17135_2_###.mccd details
| Number of frames | 40 (1 - 40) |
| Distance [mm] | 420.0 |
| Oscillation width [°] | 1.50 |
| Phi [°] | 146.5 |
| Wavelength [Å] | 0.97915 |
| Experiment Date | 2005-07-04 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
