Diffraction project datasets TM1586_1vkw

  • Method: MAD
  • Resolution: 2.0 Å
  • Space group: P 31 2 1
Download all images (14.0 GB)

PDB website for 1VKW
PDB validation report for 1VKW

doi:10.18430/M31VKW

Project details

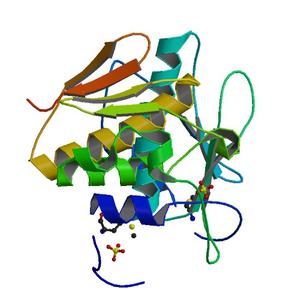

Title Crystal structure of a putative nitroreductase (tm1586) from thermotoga maritima msb8 at 2.00 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.21 / 0.24
Unit cell edges [Å] 45.30 x 45.30 x 192.75
Unit cell angles [°] 90.0, 90.0, 120.0

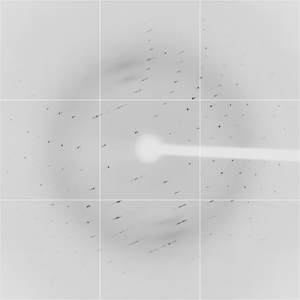

Dataset 10230_4_E1_###.img details

Number of frames 240 (1 - 240)
Distance [mm] 340.0
Oscillation width [°] 0.50
Phi [°] 285.0
Wavelength [Å] 0.97903
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

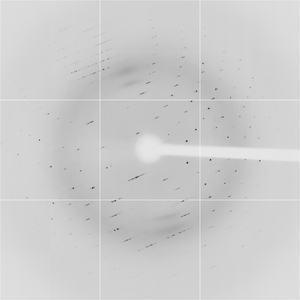

Dataset 10230_4_E2_###.img details

Number of frames 240 (1 - 240)
Distance [mm] 340.0
Oscillation width [°] 0.50
Phi [°] 285.0
Wavelength [Å] 0.91837
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

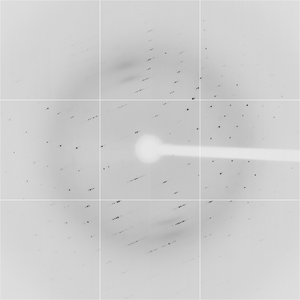

Dataset 10230_4_E3_###.img details

Number of frames 240 (1 - 240)
Distance [mm] 340.0
Oscillation width [°] 0.50
Phi [°] 285.0
Wavelength [Å] 0.97884
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

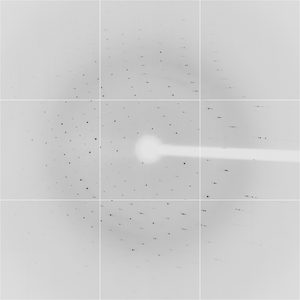

Dataset 10230_5_E1_###.img details

Number of frames 120 (1 - 120)
Distance [mm] 340.0
Oscillation width [°] 0.50
Phi [°] 45.5
Wavelength [Å] 0.97903
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

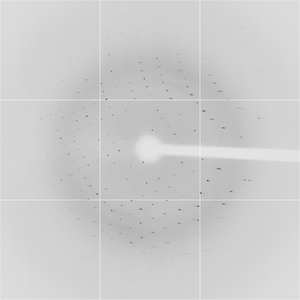

Dataset 10230_5_E2_###.img details

Number of frames 120 (1 - 120)
Distance [mm] 340.0
Oscillation width [°] 0.50
Phi [°] 45.5
Wavelength [Å] 0.91837
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

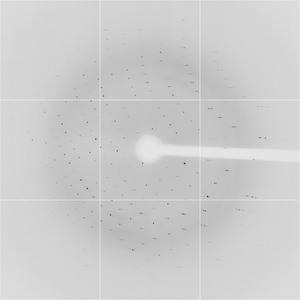

Dataset 10230_5_E3_###.img details

Number of frames 120 (1 - 120)
Distance [mm] 340.0
Oscillation width [°] 0.50
Phi [°] 45.5
Wavelength [Å] 0.97884
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

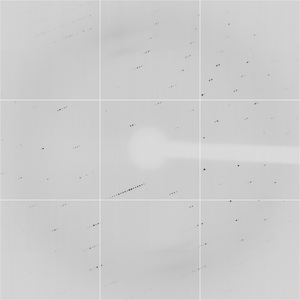

Dataset 10230_7_###.img details

Number of frames 240 (1 - 240)
Distance [mm] 500.0
Oscillation width [°] 0.50
Phi [°] 285.0
Wavelength [Å] 0.91837
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
