Diffraction project datasets TM1596_1vmk
- Method: Molecular Replacement
- Resolution: 2.01 Å
- Space group: P 1
PDB website for 1VMK
PDB validation report for 1VMK
doi:10.18430/M31VMK
Project details

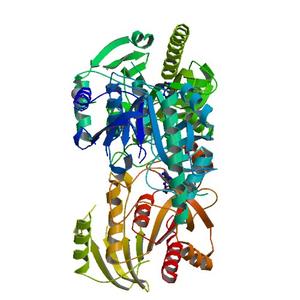

| Title | Crystal structure of Purine nucleoside phosphorylase (TM1596) from Thermotoga maritima at 2.01 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.20 / 0.24 |
| Unit cell edges [Å] | 46.48 x 74.60 x 74.59 |
| Unit cell angles [°] | 117.3, 101.0, 100.7 |

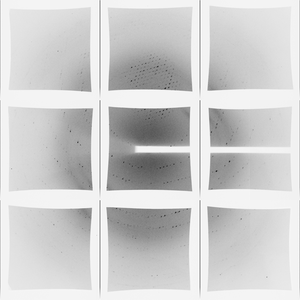

Dataset 9815_1.#### details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -90.0 |
| Phi [°] | -0.01 |
| Wavelength [Å] | 0.97913 |
| Experiment Date | 2004-02-22 |
| Equipment | 19-BM at APS (Advanced Photon Source) |

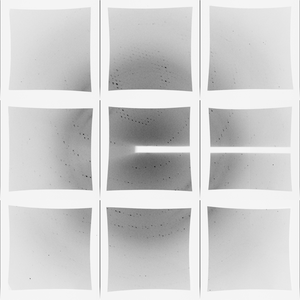

Dataset 9815_2.#### details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -90.0 |
| Phi [°] | 179.99 |
| Wavelength [Å] | 0.97913 |
| Experiment Date | 2004-02-22 |
| Equipment | 19-BM at APS (Advanced Photon Source) |
