Diffraction project datasets TM1739_1zup
Project details
| Title |

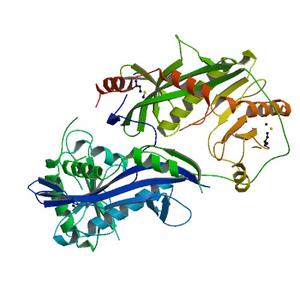

CRYSTAL STRUCTURE OF A PUTATIVE NUCLEASE WITH A RIBONUCLEASE H-LIKE MOTIF FOLD (TM1739) FROM THERMOTOGA MARITIMA AT 2.20 A RESOLUTION |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.23 / 0.27 |
| Unit cell edges [Å] |
82.43 x
82.43 x
234.49
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

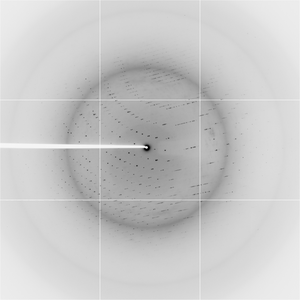

Dataset p1_1_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
40.0 |
| Wavelength [Å] |
1.00000 |
| Experiment Date |
2003-12-20 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|

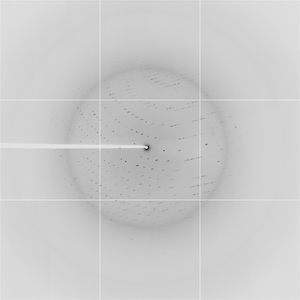

Dataset p1_2_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
40.0 |
| Wavelength [Å] |
1.00000 |
| Experiment Date |
2003-12-20 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|

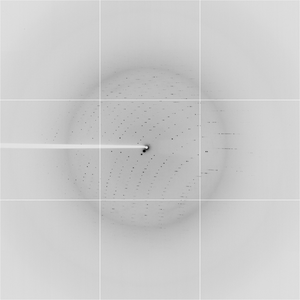

Dataset p1_3_###.img details
| Number of frames |
30 (1 - 30) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
100.0 |
| Wavelength [Å] |
1.00000 |
| Experiment Date |
2003-12-20 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|
