Diffraction project datasets TM1782_1vkn
Project details
| Title |

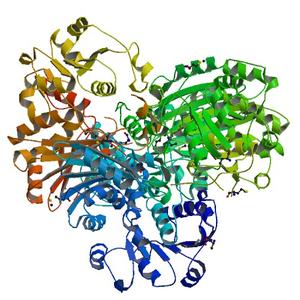

Crystal structure of N-acetyl-gamma-glutamyl-phosphate reductase (TM1782) from Thermotoga maritima at 1.80 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.18 / 0.21 |
| Unit cell edges [Å] |
85.10 x
92.10 x
100.88
|
| Unit cell angles [°] |
90.0,
112.8,
90.0
|

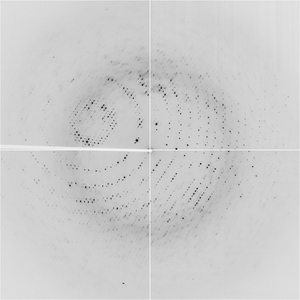

Dataset TM1782B4_102_###.img details
| Number of frames |
22 (1 - 22) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
216.0 |
| Wavelength [Å] |
0.97940 |
| Experiment Date |
2003-08-30 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|

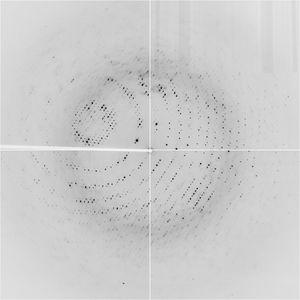

Dataset TM1782B4_103_###.img details
| Number of frames |
360 (1 - 360) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
216.0 |
| Wavelength [Å] |
0.97940 |
| Experiment Date |
2003-08-30 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|

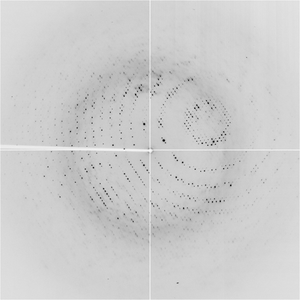

Dataset TM1782B4_2_###.img details
| Number of frames |
22 (1 - 22) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
36.0 |
| Wavelength [Å] |
0.97940 |
| Experiment Date |
2003-08-30 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|

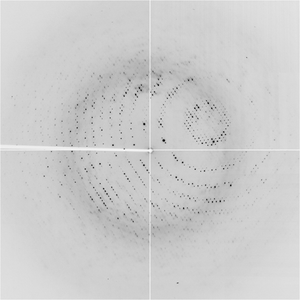

Dataset TM1782B4_3_###.img details
| Number of frames |
360 (1 - 360) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
36.0 |
| Wavelength [Å] |
0.97940 |
| Experiment Date |
2003-08-30 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|

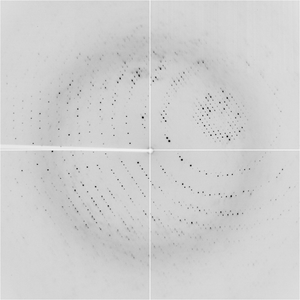

Dataset TM1782B4_4_E1_###.img details
| Number of frames |
432 (1 - 432) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
0.75 |
| Phi [°] |
36.0 |
| Wavelength [Å] |
0.97950 |
| Experiment Date |
2003-08-30 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|

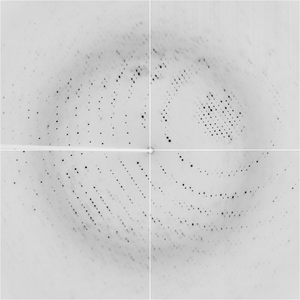

Dataset TM1782B4_4_E2_###.img details
| Number of frames |
432 (1 - 432) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
0.75 |
| Phi [°] |
36.0 |
| Wavelength [Å] |
1.00000 |
| Experiment Date |
2003-08-30 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|

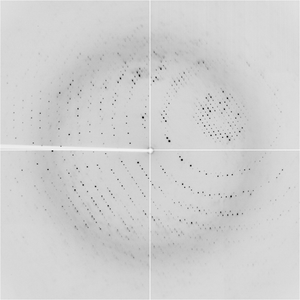

Dataset TM1782B4_5_###.img details
| Number of frames |
300 (1 - 300) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
0.75 |
| Phi [°] |
36.0 |
| Wavelength [Å] |
0.97940 |
| Experiment Date |
2003-08-30 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|
