Diffraction project datasets TT4069B_4ppy
Project details
| Title |

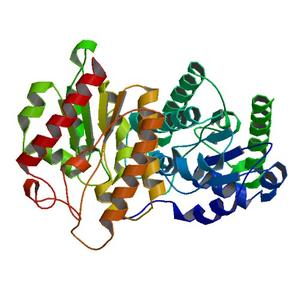

Crystal structure of a putative acylhydrolase (BF3764) from Bacteroides fragilis NCTC 9343 at 2.00 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.19 / 0.21 |
| Unit cell edges [Å] |
202.73 x
62.21 x
61.01
|
| Unit cell angles [°] |
90.0,
95.9,
90.0
|

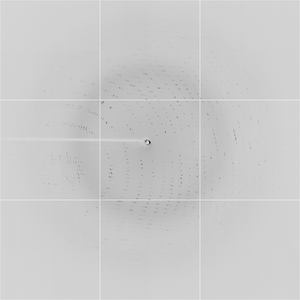

Dataset 199758_1_E1_###.img details
| Number of frames |
100 (1 - 100) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
6.0 |
| Wavelength [Å] |
0.97918 |
| Experiment Date |
2013-10-17 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|

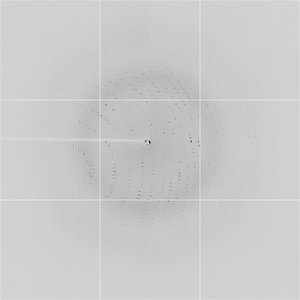

Dataset 199758_1_E2_###.img details
| Number of frames |
100 (1 - 100) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
6.0 |
| Wavelength [Å] |
0.91840 |
| Experiment Date |
2013-10-17 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|

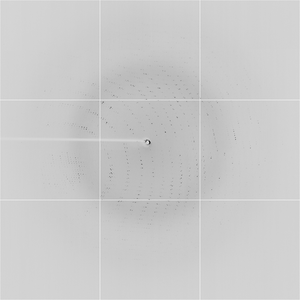

Dataset 199758_2_###.img details
| Number of frames |
100 (1 - 100) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
6.0 |
| Wavelength [Å] |
0.97911 |
| Experiment Date |
2013-10-17 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|
