Diffraction project datasets TT6205B_3m1u
- Method: MAD
- Resolution: 1.75 Å
- Space group: P 1 21 1
PDB website for 3M1U
PDB validation report for 3M1U
doi:10.18430/M33M1U
Project details

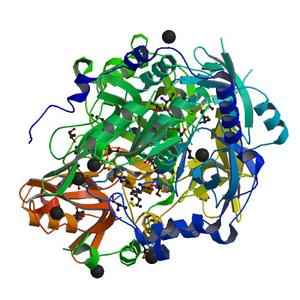

| Title | Crystal structure of a Putative gamma-D-glutamyl-L-diamino acid endopeptidase (DVU_0896) from DESULFOVIBRIO VULGARIS HILDENBOROUGH at 1.75 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.14 / 0.17 |
| Unit cell edges [Å] | 59.34 x 54.47 x 122.98 |
| Unit cell angles [°] | 90.0, 94.1, 90.0 |

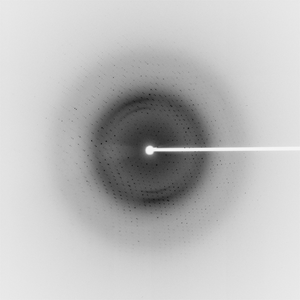

Dataset 146507_1_E1_####.mccd details
| Number of frames | 155 (1 - 155) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 218.0 |
| Wavelength [Å] | 0.97918 |
| Experiment Date | 2010-01-24 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

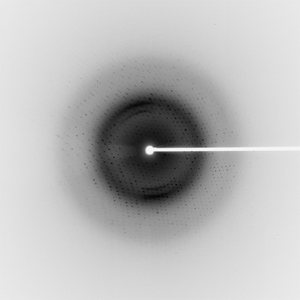

Dataset 146507_1_E2_####.mccd details
| Number of frames | 155 (1 - 155) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 218.0 |
| Wavelength [Å] | 0.91162 |
| Experiment Date | 2010-01-24 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
