Diffraction project datasets WS20613E_4j5o
Project details
| Title |

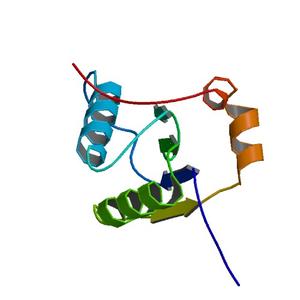

Room temperature crystal structure of a RNA binding motif protein 39 (Rbm39) from Mus musculus at 1.11 A resolution |
| Authors |
JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG), Partnership for T-Cell Biology (TCELL) |
| R / Rfree |
0.11 / 0.13 |
| Unit cell edges [Å] |
44.62 x
52.83 x
85.65
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

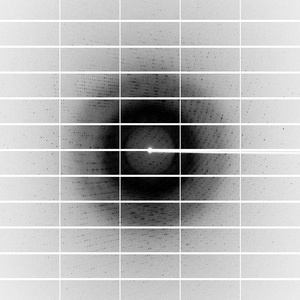

Dataset C8_1_1_#####.cbf details
| Number of frames |
25 (1 - 25) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
127.52 |
| Wavelength [Å] |
0.97950 |
| Experiment Date |
2012-05-30 |
| Equipment |
BL12-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

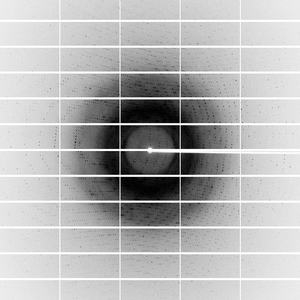

Dataset C8_2_2_#####.cbf details
| Number of frames |
25 (1 - 25) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
107.0 |
| Wavelength [Å] |
0.97950 |
| Experiment Date |
2012-05-30 |
| Equipment |
BL12-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

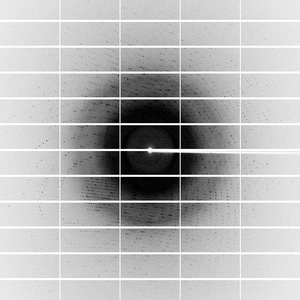

Dataset C8_3_3_#####.cbf details
| Number of frames |
25 (1 - 25) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
87.52 |
| Wavelength [Å] |
0.97950 |
| Experiment Date |
2012-05-30 |
| Equipment |
BL12-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

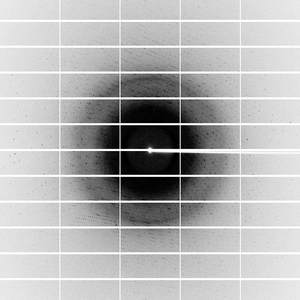

Dataset C8_4_4_#####.cbf details
| Number of frames |
25 (1 - 25) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
67.52 |
| Wavelength [Å] |
0.97950 |
| Experiment Date |
2012-05-30 |
| Equipment |
BL12-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

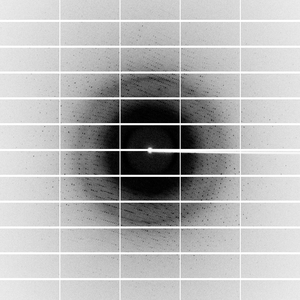

Dataset C8_5_5_#####.cbf details
| Number of frames |
25 (1 - 25) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
47.52 |
| Wavelength [Å] |
0.97950 |
| Experiment Date |
2012-05-30 |
| Equipment |
BL12-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

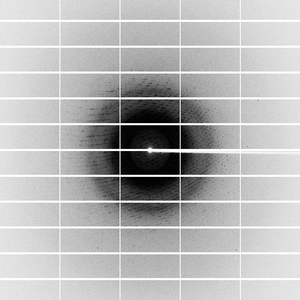

Dataset C8_6_10_#####.cbf details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
148.77 |
| Wavelength [Å] |
0.82650 |
| Experiment Date |
2012-05-30 |
| Equipment |
BL12-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

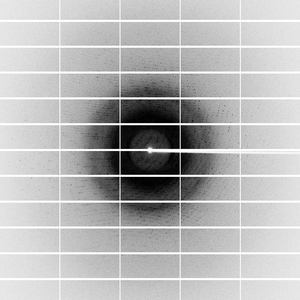

Dataset C8_6_11_#####.cbf details
| Number of frames |
360 (1 - 360) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
120.0 |
| Wavelength [Å] |
0.82650 |
| Experiment Date |
2012-05-30 |
| Equipment |
BL12-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

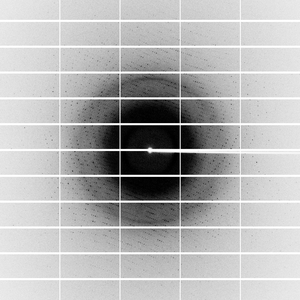

Dataset C8_6_6_#####.cbf details
| Number of frames |
25 (1 - 25) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
27.52 |
| Wavelength [Å] |
0.97950 |
| Experiment Date |
2012-05-30 |
| Equipment |
BL12-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

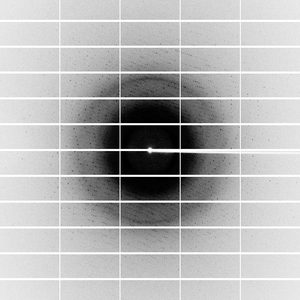

Dataset C8_6_7_#####.cbf details
| Number of frames |
25 (1 - 25) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
27.52 |
| Wavelength [Å] |
0.97950 |
| Experiment Date |
2012-05-30 |
| Equipment |
BL12-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

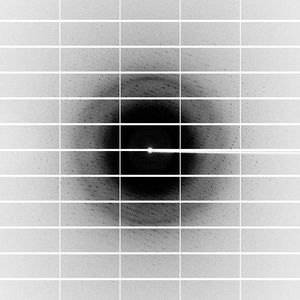

Dataset C8_6_8_#####.cbf details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
27.52 |
| Wavelength [Å] |
0.97950 |
| Experiment Date |
2012-05-30 |
| Equipment |
BL12-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

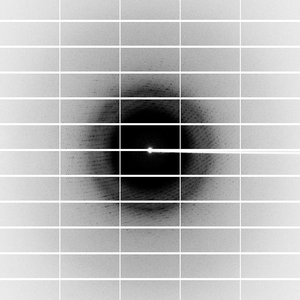

Dataset C8_6_9_#####.cbf details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
148.77 |
| Wavelength [Å] |
0.82650 |
| Experiment Date |
2012-05-30 |
| Equipment |
BL12-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
