Diffraction project datasets WT2735B_4lii
- Method: SAD
- Resolution: 1.88 Å
- Space group: P 1 21 1
PDB website for 4LII
doi:10.18430/M34LII
Project details
| Title | Crystal structure of an apoptosis-inducing factor, mitochondrion-associated, 1 (AIFM1) from Homo sapiens at 1.88 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG), Partnership for T-Cell Biology (TCELL) |
| R / Rfree | 0.17 / 0.21 |
| Unit cell edges [Å] | 50.68 x 89.81 x 60.47 |
| Unit cell angles [°] | 90.0, 94.8, 90.0 |

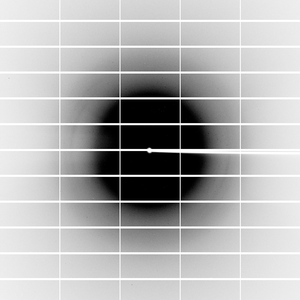

Dataset 177823_1_#####.cbf details
| Number of frames | 900 (1 - 900) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.20 |
| Phi [°] | 210.0 |
| Wavelength [Å] | 0.97940 |
| Experiment Date | 2012-02-29 |
| Equipment | BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
